Overview

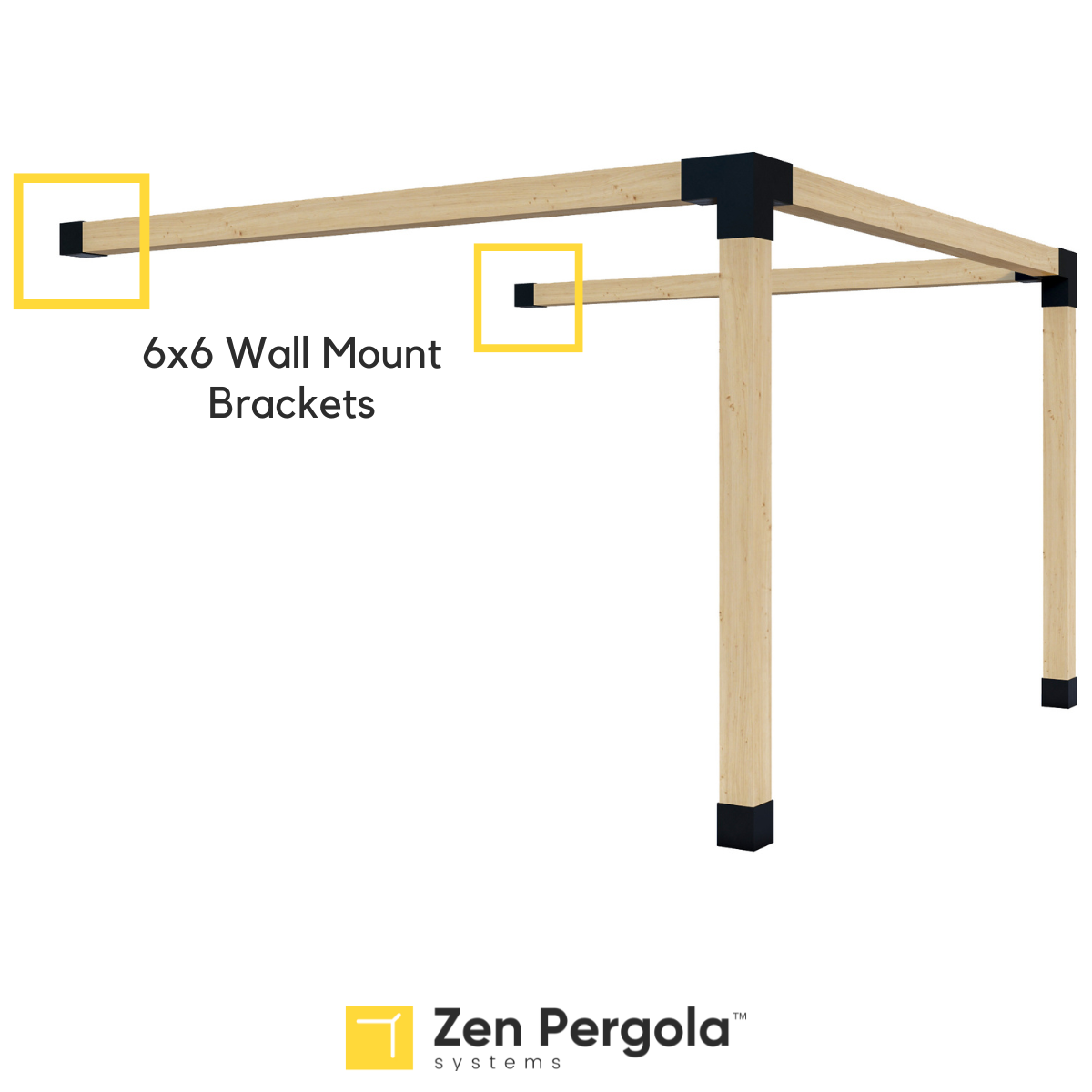

Wall mount brackets are used to secure horizontal beams of attached pergolas to your home or another structure. If you're building a freestanding pergola, you won't need any wall mount brackets. But if you're building an attached pergola, you'll need 2-3 wall mount brackets: 2 if the attached side is 4-12 feet or 3 if the attached side is 13-24 feet.

Key Features

• Made with premium quality steel
• 14-gauge steel (~2.0mm thick)
• Made for dressed lumber commonly called 4x4s (actual dimensions are 3.5” x 3.5”)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Low-profile design (anchoring holes inside the bracket to avoid unsightly lip/flange on the outside of the bracket)
• Pre-drilled holes for securing wood and accessories to bracket
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
• Reduces your pergola build time by as much as 75%
• Backed by a 5-year warranty
• Shipped directly to your doorstep from Boise, Idaho

Specifications

• Width: 3.75 inches (95 mm)
• Depth: 3.75 inches (95 mm)
• Height: 3.55 inches (91 mm)
• Inner dimensions of sleeve (open at top): 3.6 x 3.5 inches (92 x 88.5 mm) - made for 4x4 wood posts (which measure 3.5 x 3.5 inches )
• Holes on end plate (secured to home/structure): 4 (one in each corner) - 0.5-inch holes for larger anchoring hardware ( not included)
• Holes on each side wall: 4 on left & right walls, 2 on bottom wall
• Weight: 1.375 pounds
• Not included: wood post, anchoring hardware for securing bracket to home/structure
