Usage

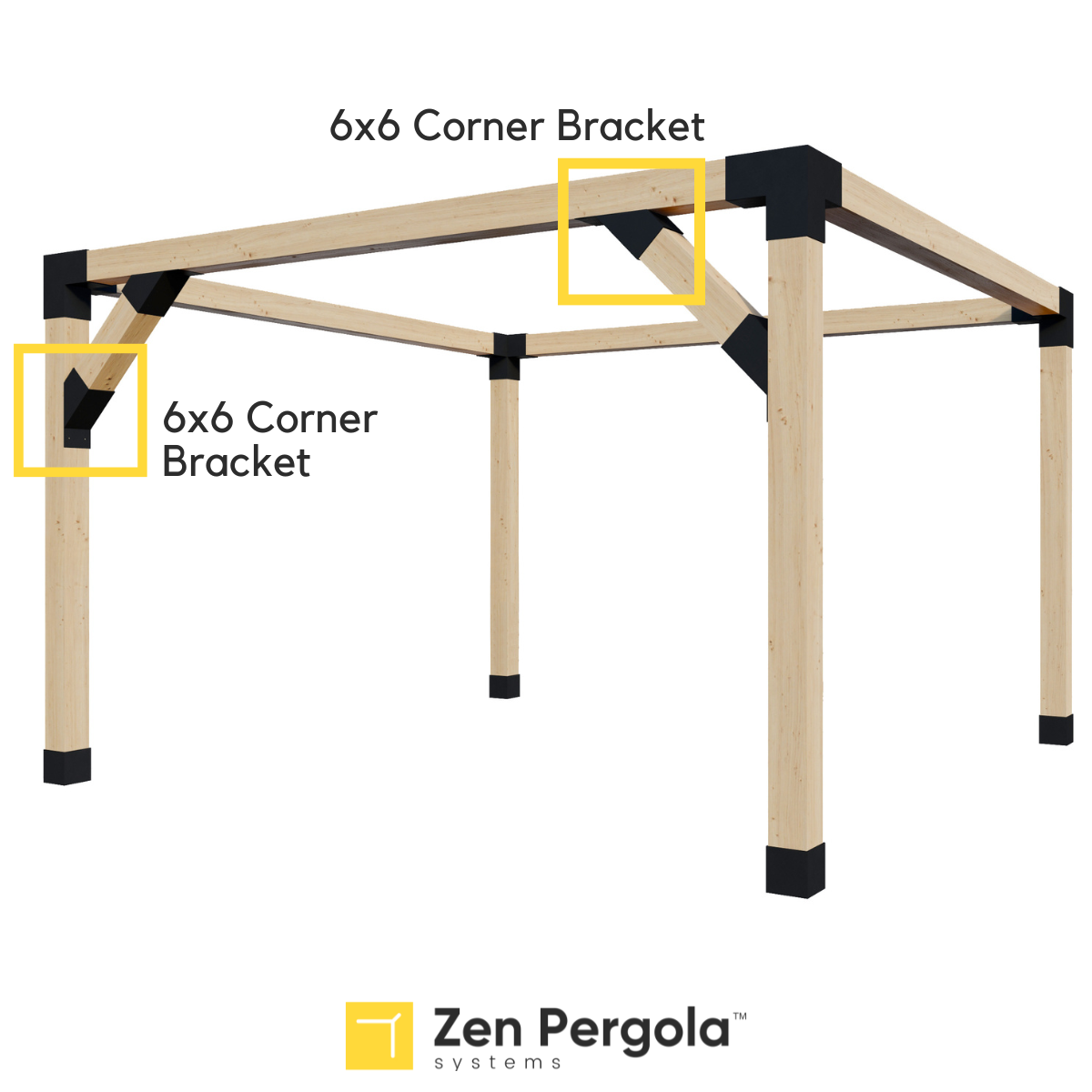

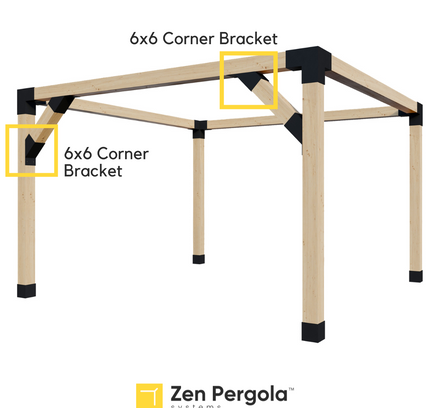

Support brackets can be used in the top corners of both freestanding pergolas and attached pergolas to: a) add a nice accent to the look of the pergola, and/or b) prevent bowing/sagging for longer spans of wood. For each corner support, you'll need to get 2 brackets (one for the top and one for the side).

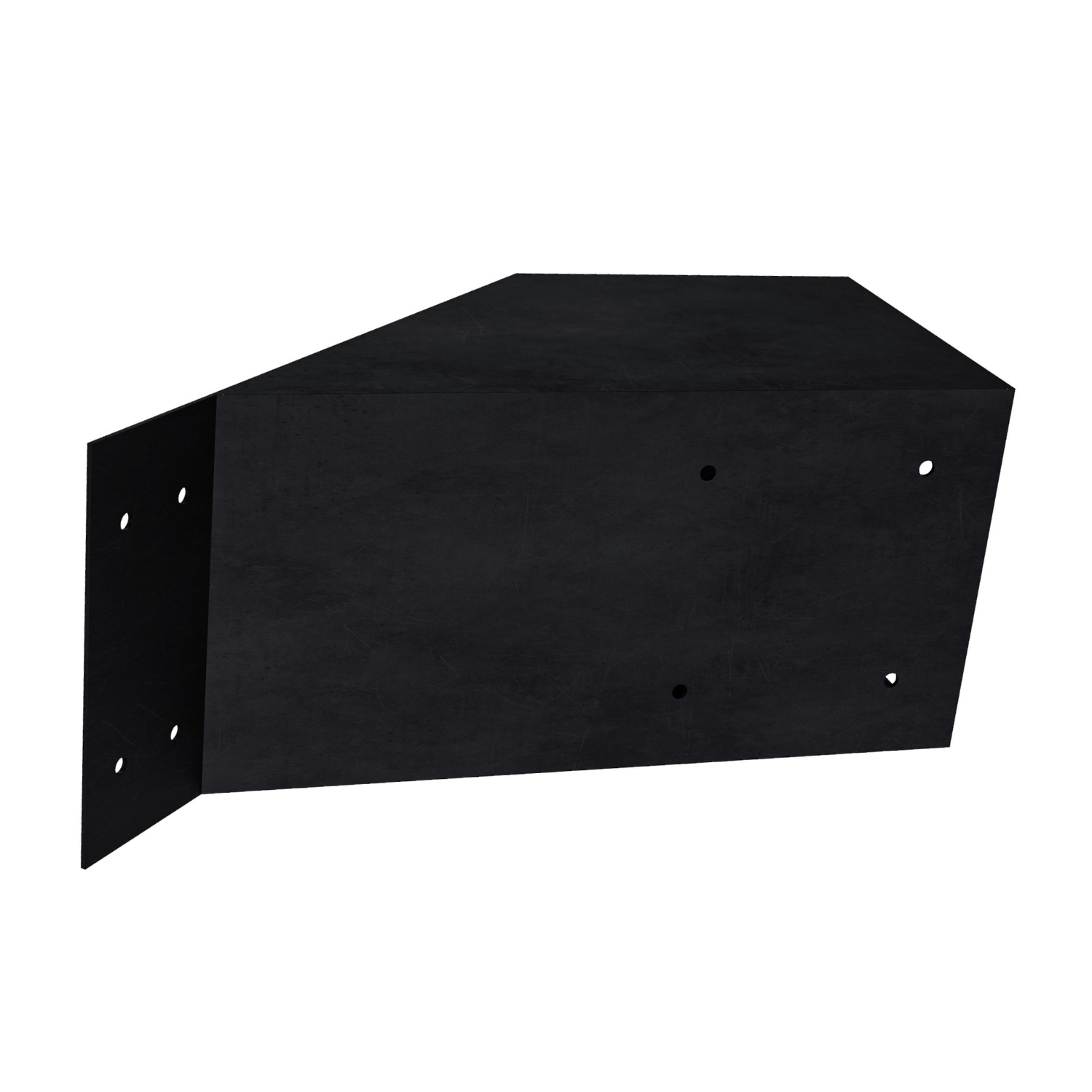

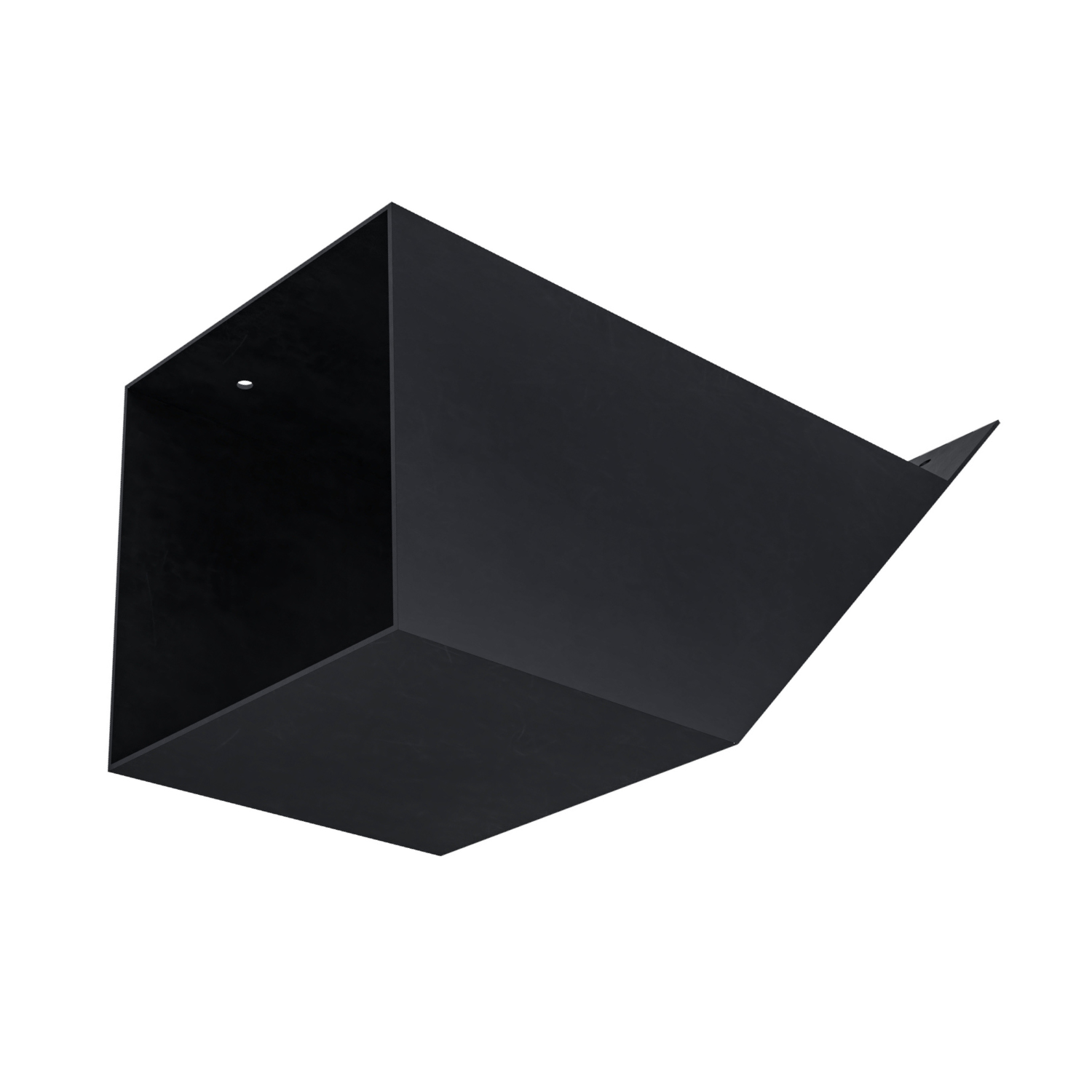

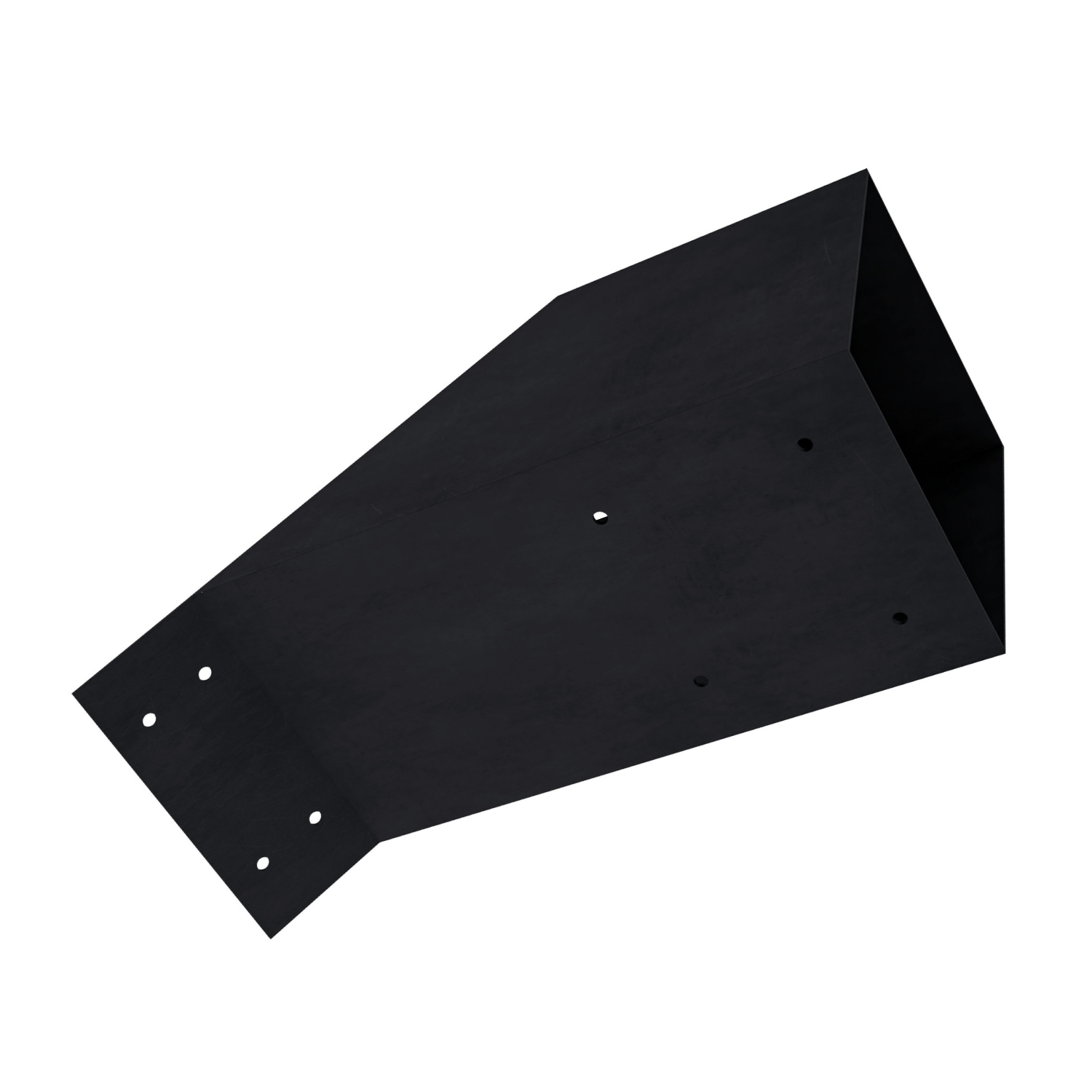

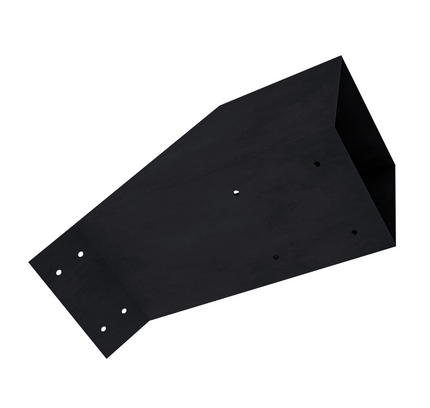

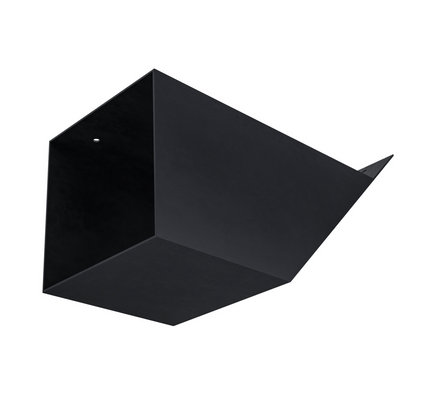

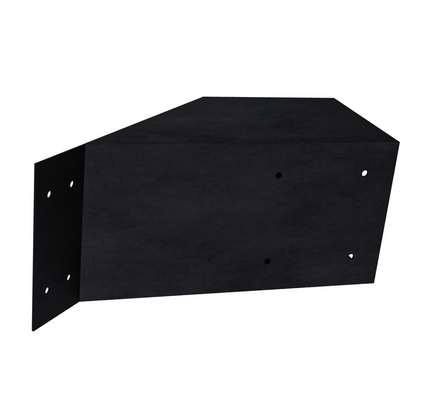

6x6 Pergola Bracket Features
- Made with premium 12-gauge steel (~2.6mm thick)
- Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5” x 5.5”)
- Laser-cut, bent and welded
- Advanced weather coating technology to withstand extreme weather conditions
- Pre-drilled holes for securing wood and accessories to bracket
- Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
- Reduces your pergola build time by as much as 75%
- Backed by a 5-year warranty
- Shipped directly to your doorstep from Boise, Idaho
Dimensions & Specifications
- Width of arm: 5.8 inches (148 mm)
- Depth of arm: 5.8 inches (148 mm)
- Length of arm: 11.7 inches (296 mm) on front, 5.8 inches (148 mm) on back
- Angle of arm: 45 degrees
- Inner dimensions of arm: 5.6 x 5.6 inches (143 x 143 mm) - made for 6x6 wood posts (which measure 5.5 x 5.5 inches)
- Holes on arm: 4 (2x2 grid) on front side
- Hole size: 0.25 inch (6.35 mm) - ideal for #10 size screws (included)
- Weight: 8.0 pounds
- Not included: wood posts (lumber)
