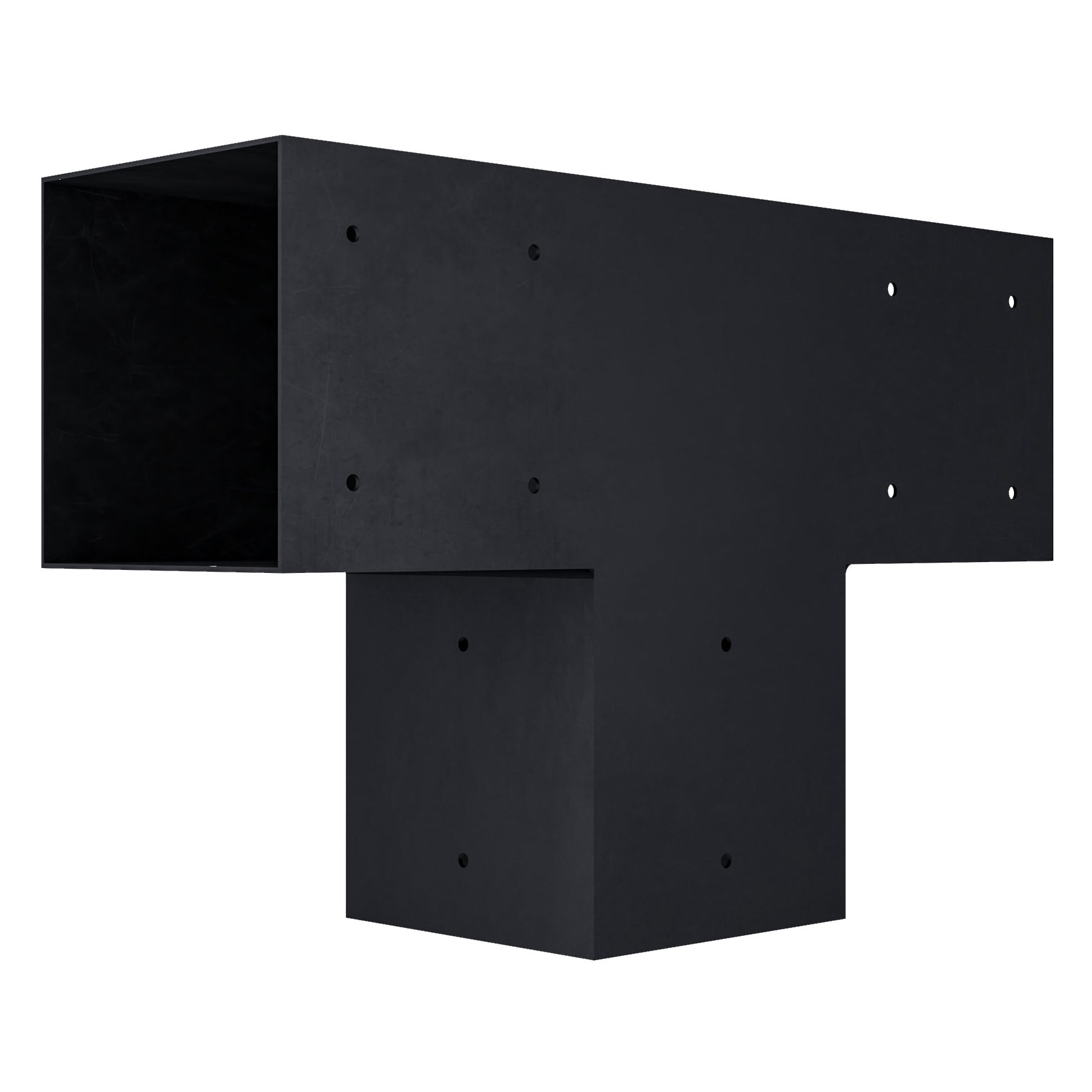

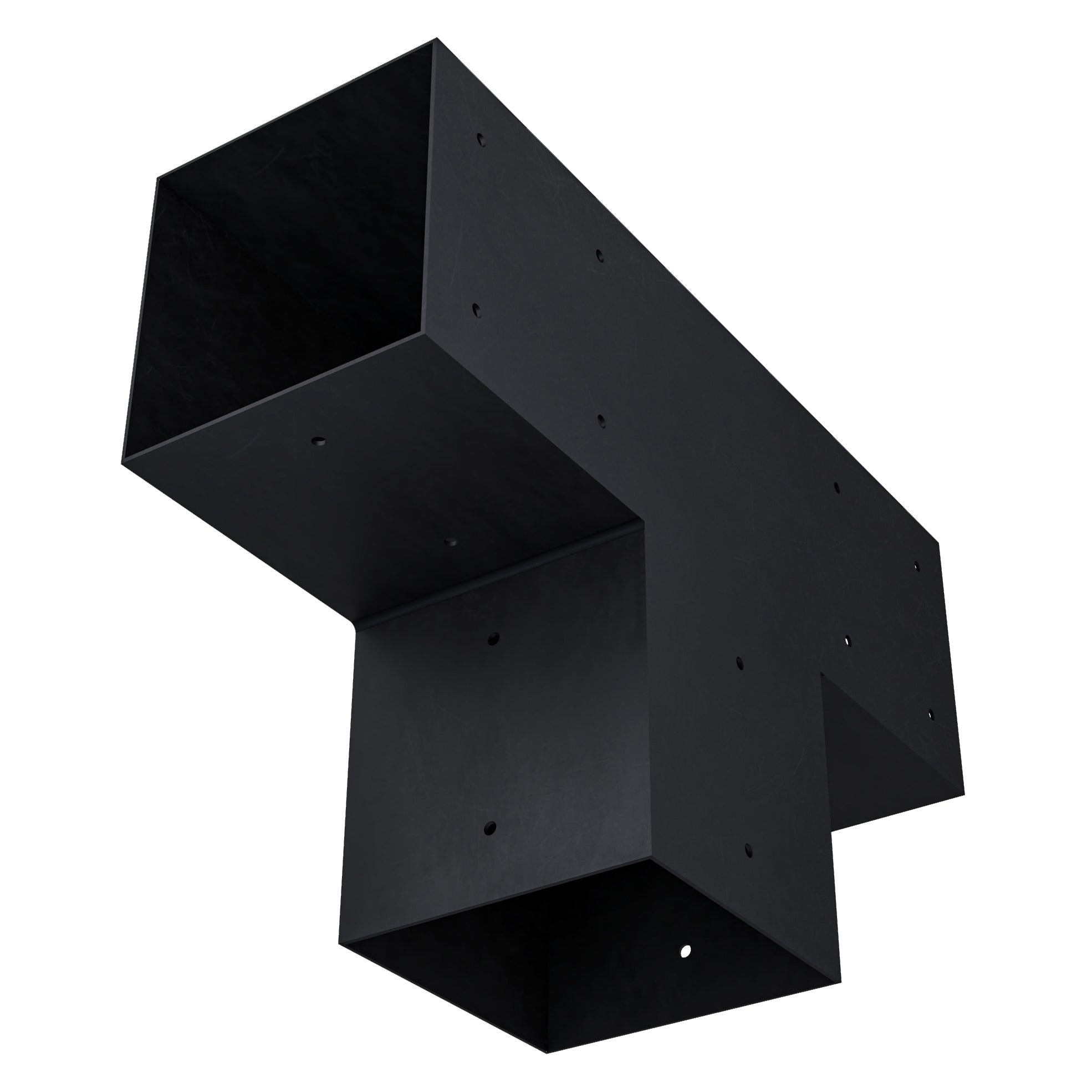

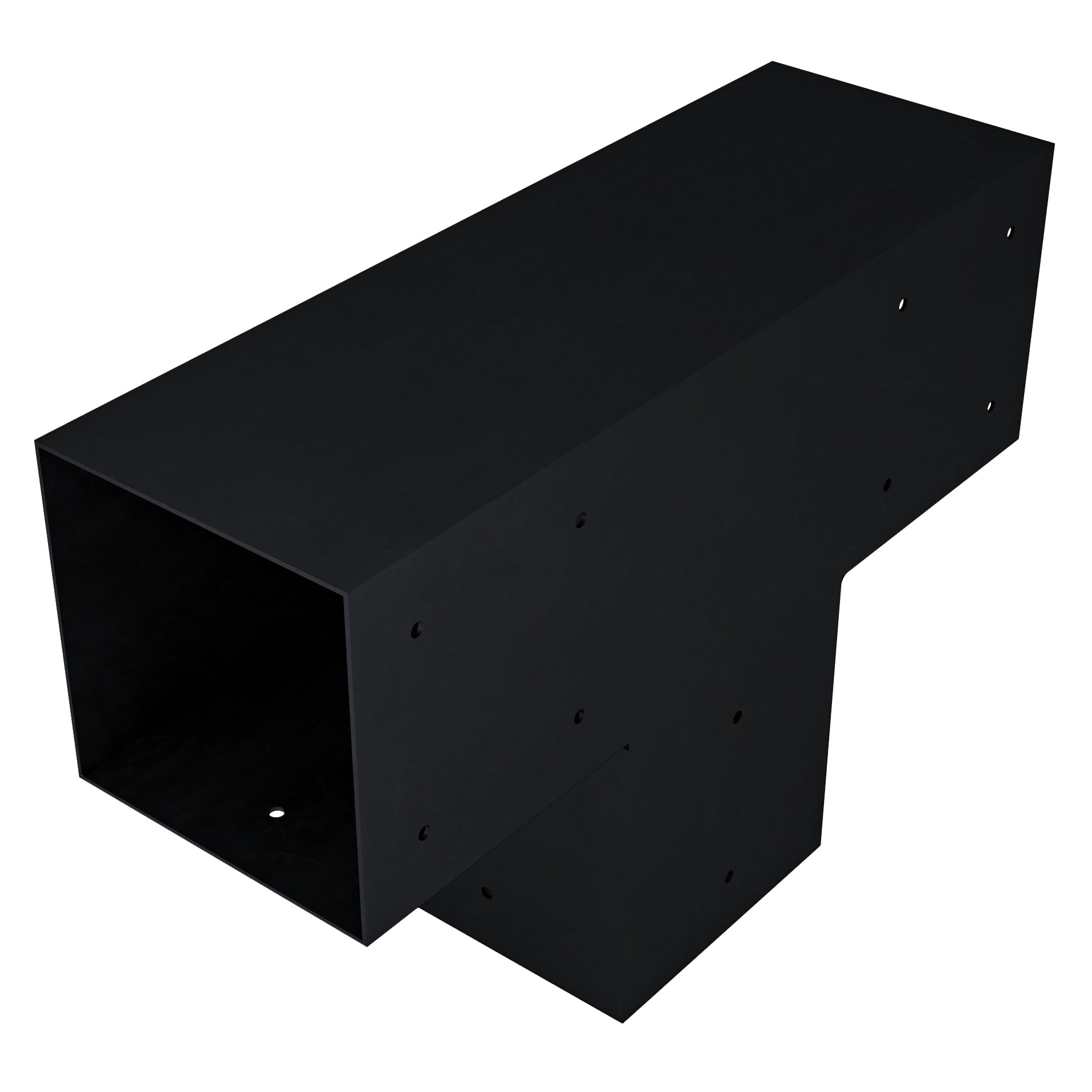

3-Arm T Bracket Usage

3-arm "T" brackets are typically used to split one wall of a pergola into two sections, either to a) decrease the distance each privacy wall slat spans (to prevent sagging) or b) create a "doorway" in the wall (i.e. one section of the wall has a privacy wall but the other side doesn't).

6x6 Pergola Bracket Features

• Made with premium quality steel
• 12-gauge steel (~2.6mm thick)
• Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5” x 5.5”)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to bracket
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
• Reduces your pergola build time by as much as 75%
• Backed by a 5-year warranty

• Shipped directly to your doorstep from Boise, Idaho

Dimensions & Specifications

• Width: 17.5 inches (444 mm)
• Depth: 5.8 inches (148 mm)
• Height: 11.65 inches (296 mm)
• Number of arms: 3 (1 vertical + 2 horizontal)
• Inner dimensions of each arm: 5.6 x 5.6 inches (143 x 143 mm) - made for 6x6 wood posts (which measure 5.5 x 5.5 inches)
• Hole size: 0.25 inch (6.35 mm) - ideal for #10 size screws (included)
• Weight: 11.25 pounds
• Not included: wood posts
