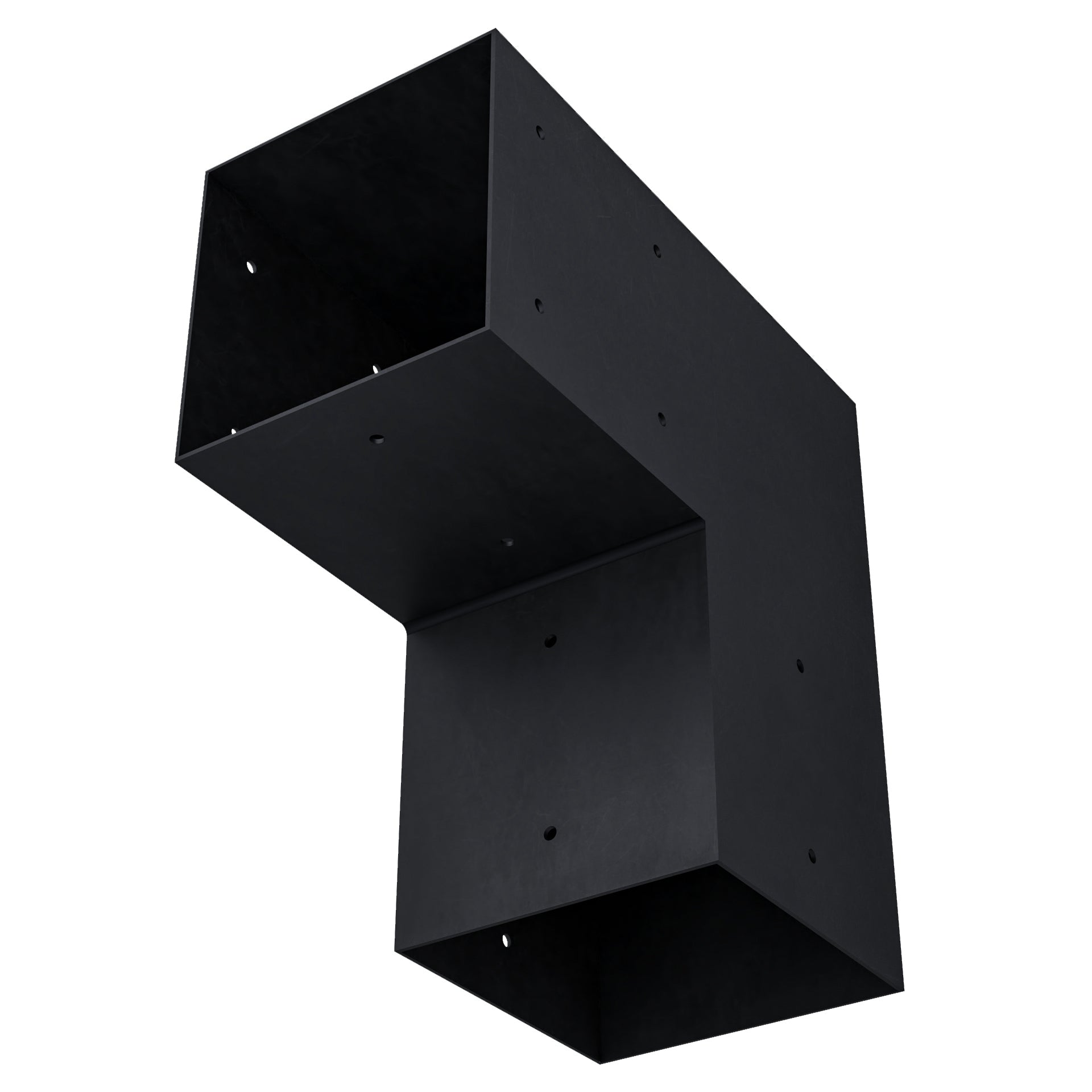

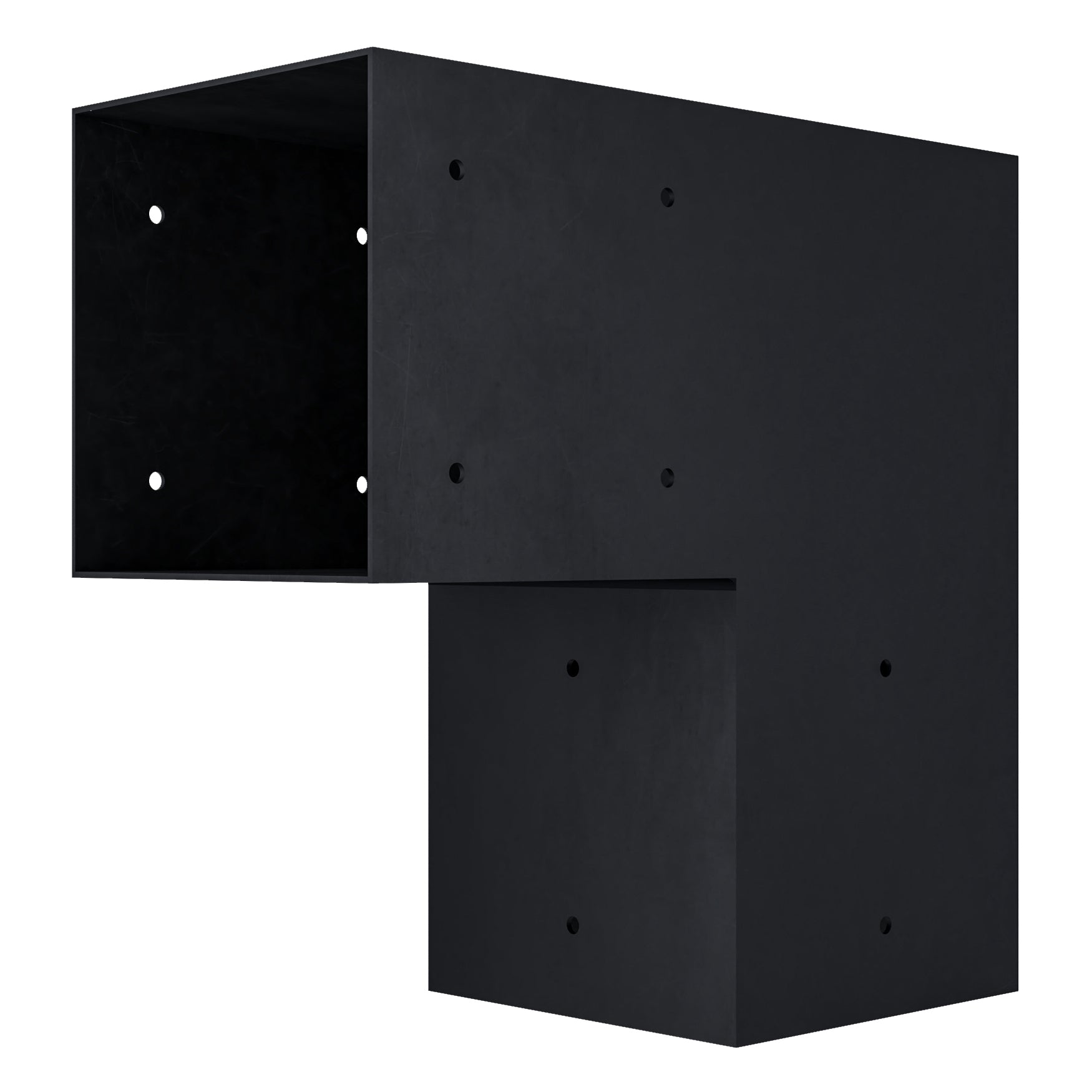

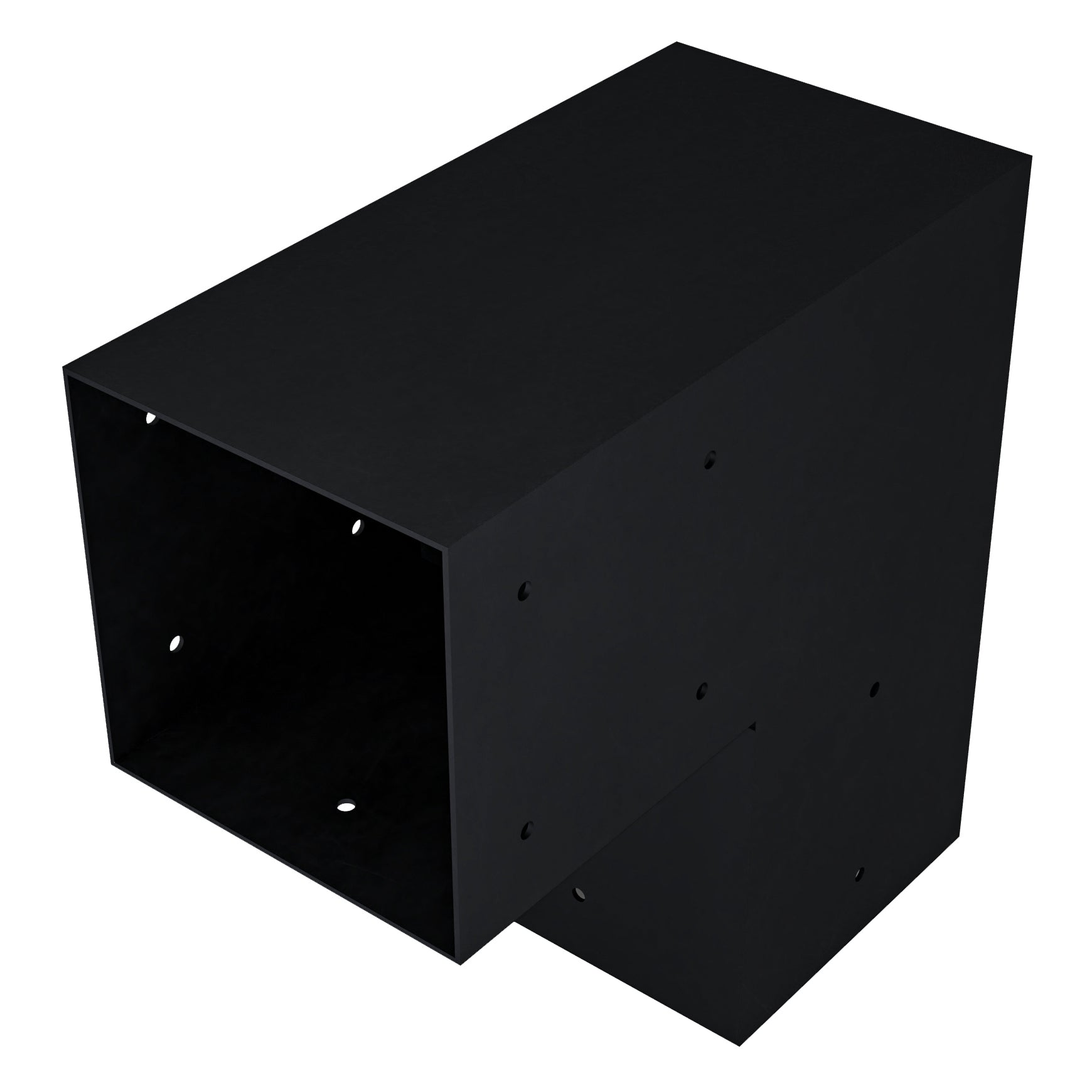

2-Arm L Bracket Usage

2-arm "L" brackets are used at the tops of a stand-alone privacy wall (one that is not connected to a pergola frame). They are also used in when building a triangle pergola with traditional roof rafters (atop the beams).

6x6 Pergola Bracket Features

• Made with premium quality steel
• 12-gauge steel (~2.6mm thick)
• Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5” x 5.5”)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to bracket
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
• Reduces your pergola build time by as much as 75%
• Backed by a 5-year warranty

• Shipped directly to your doorstep from Boise, Idaho

Dimensions & Specifications

• Width: 11.65 inches (296 mm)
• Depth: 5.8 inches (148 mm)
• Height: 11.65 inches (296 mm)
• Number of arms: 2 (1 vertical + 1 horizontal)
• Inner dimensions of each arm: 5.6 x 5.6 inches (143 x 143 mm) - made for 6x6 wood posts (which measure 5.5 x 5.5 inches)
• Hole size: 0.25 inch (6.35 mm) - ideal for #10 size screws (included)
• Weight: 11.25 pounds
• Not included: wood posts
