Pergola Kit Details

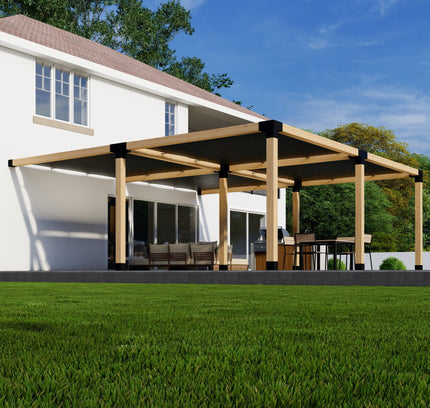

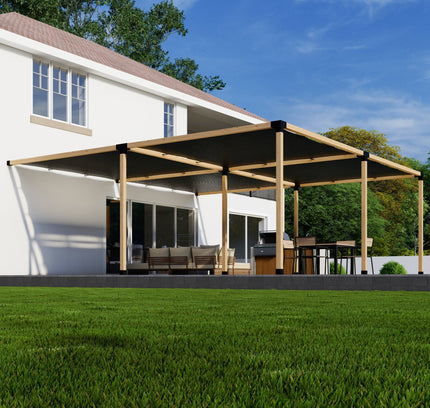

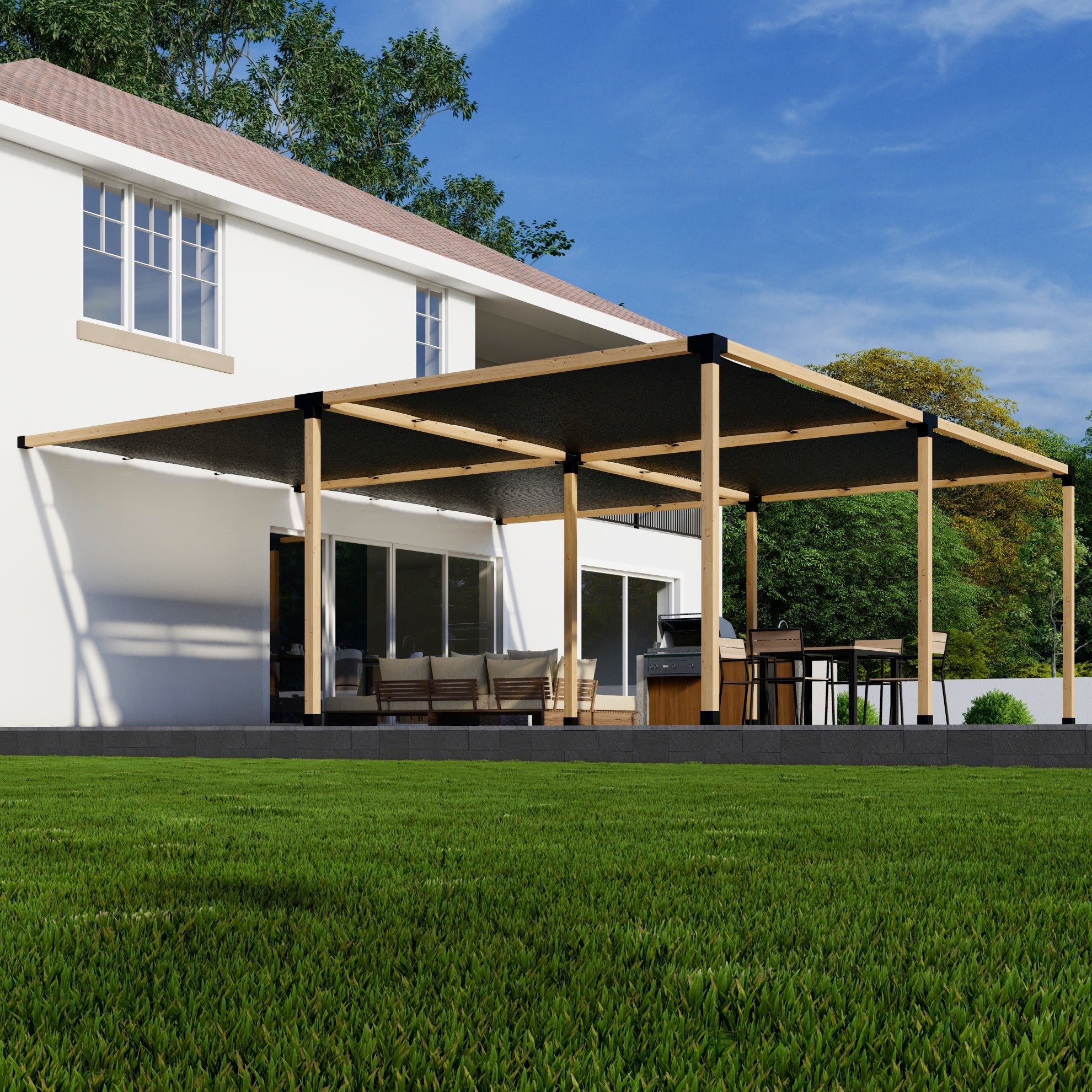

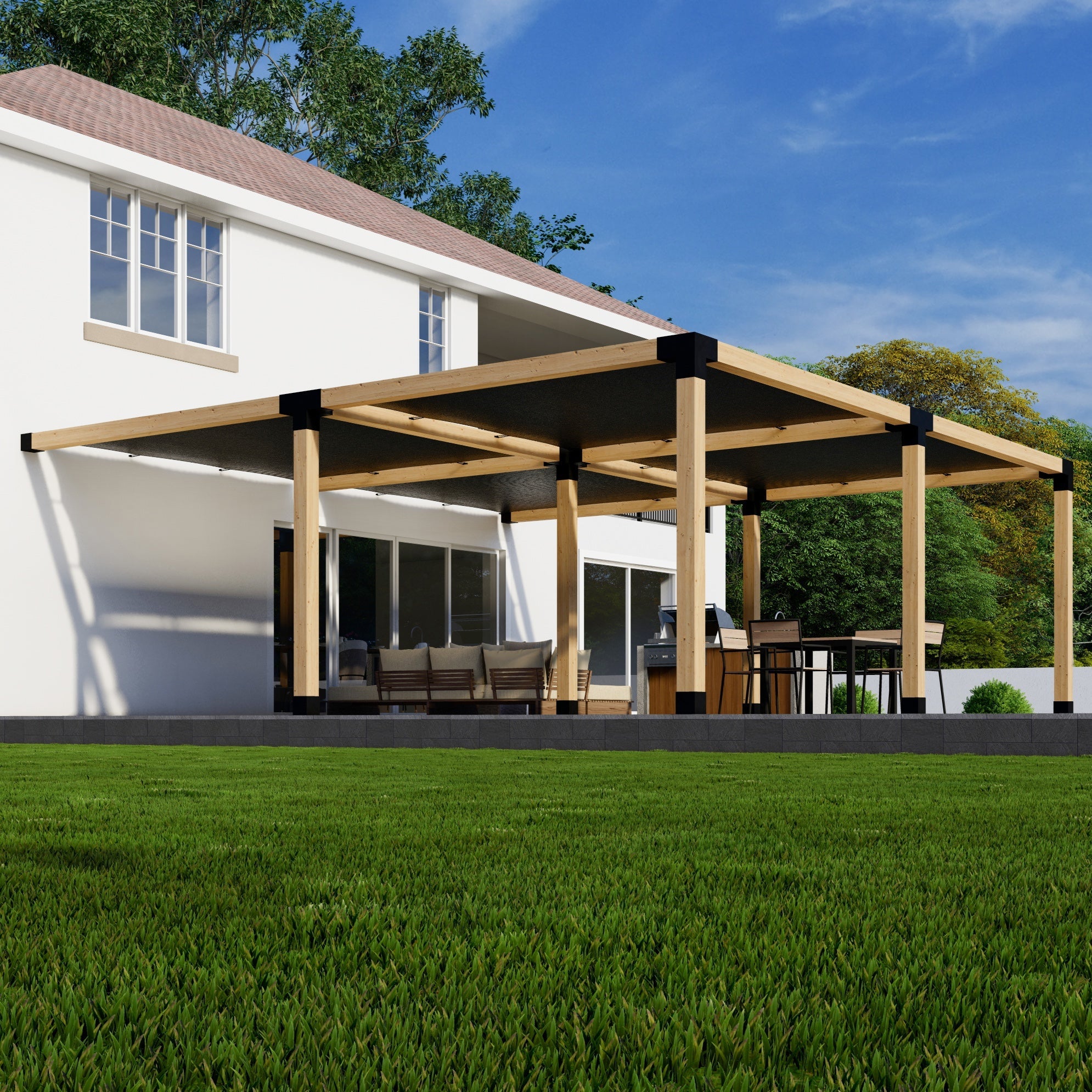

• Type of Pergola: Attached to house (6 posts)
• Size of Pergola: 4 blocks (any size up to 24' x 24')
• Bracket Size: Your choice of 4x4 brackets or 6x6 brackets

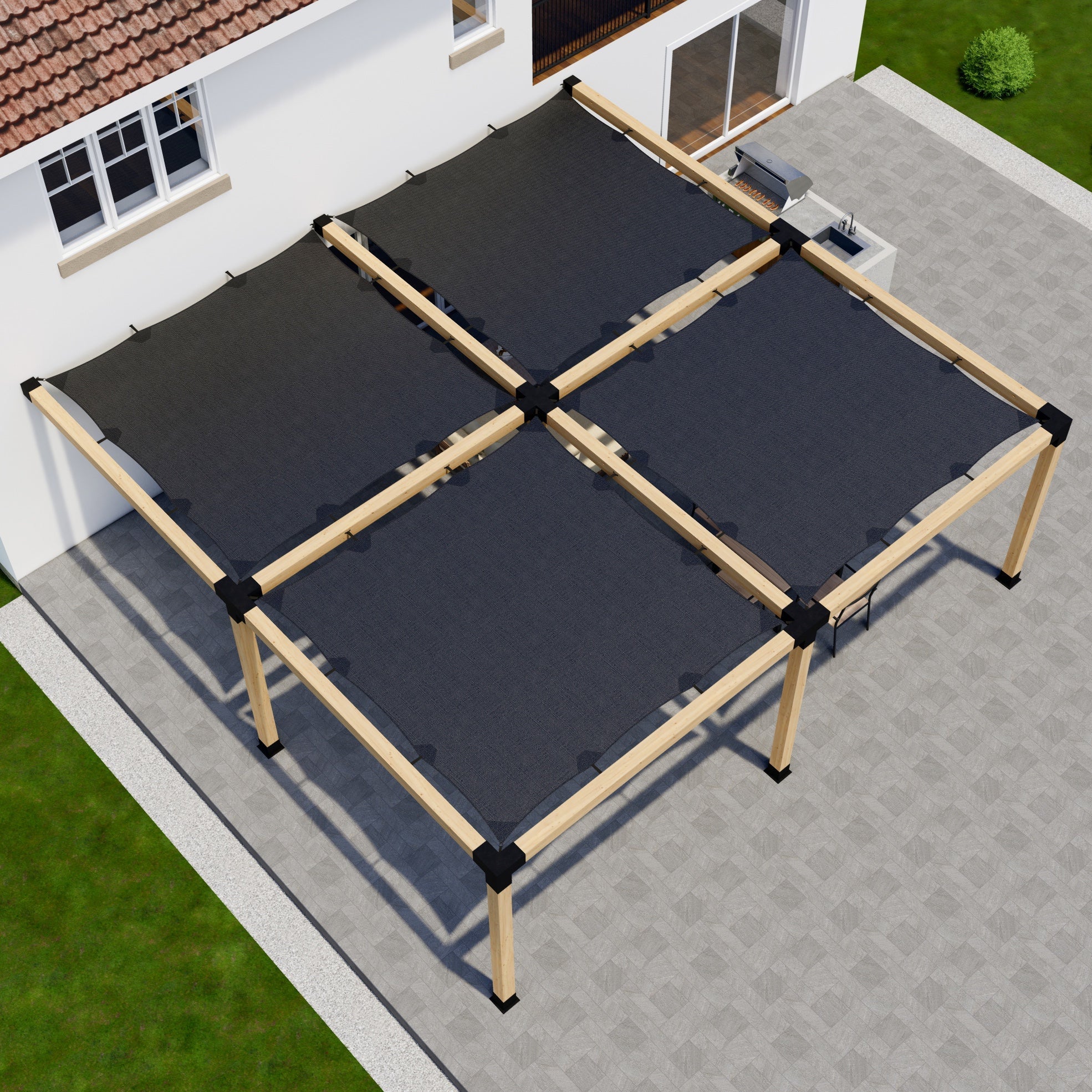

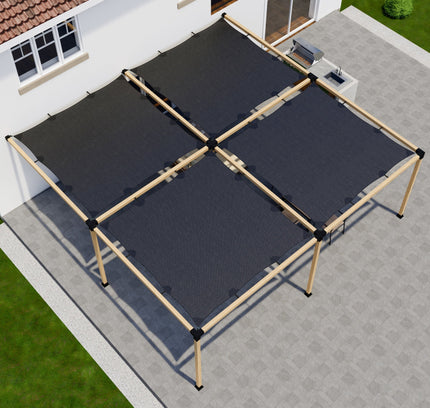

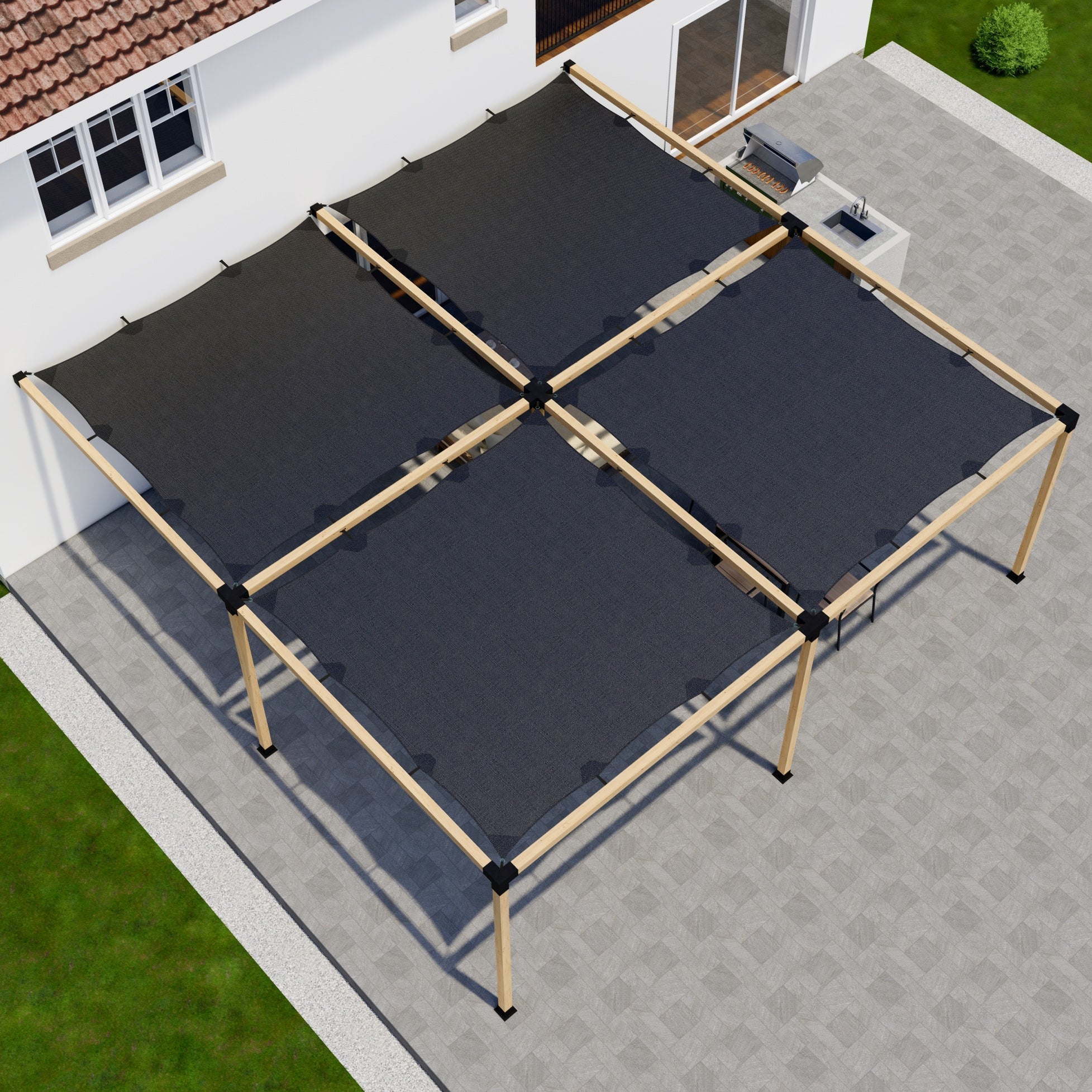

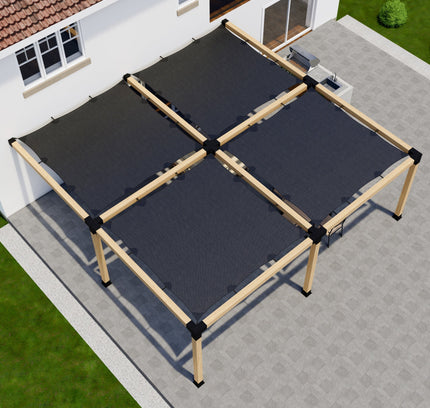

• Roof Style: Shade canopies (from 8x8 to 12x12)
• Warranty: 5-year warranty on brackets, 1-year warranty on shade canopies

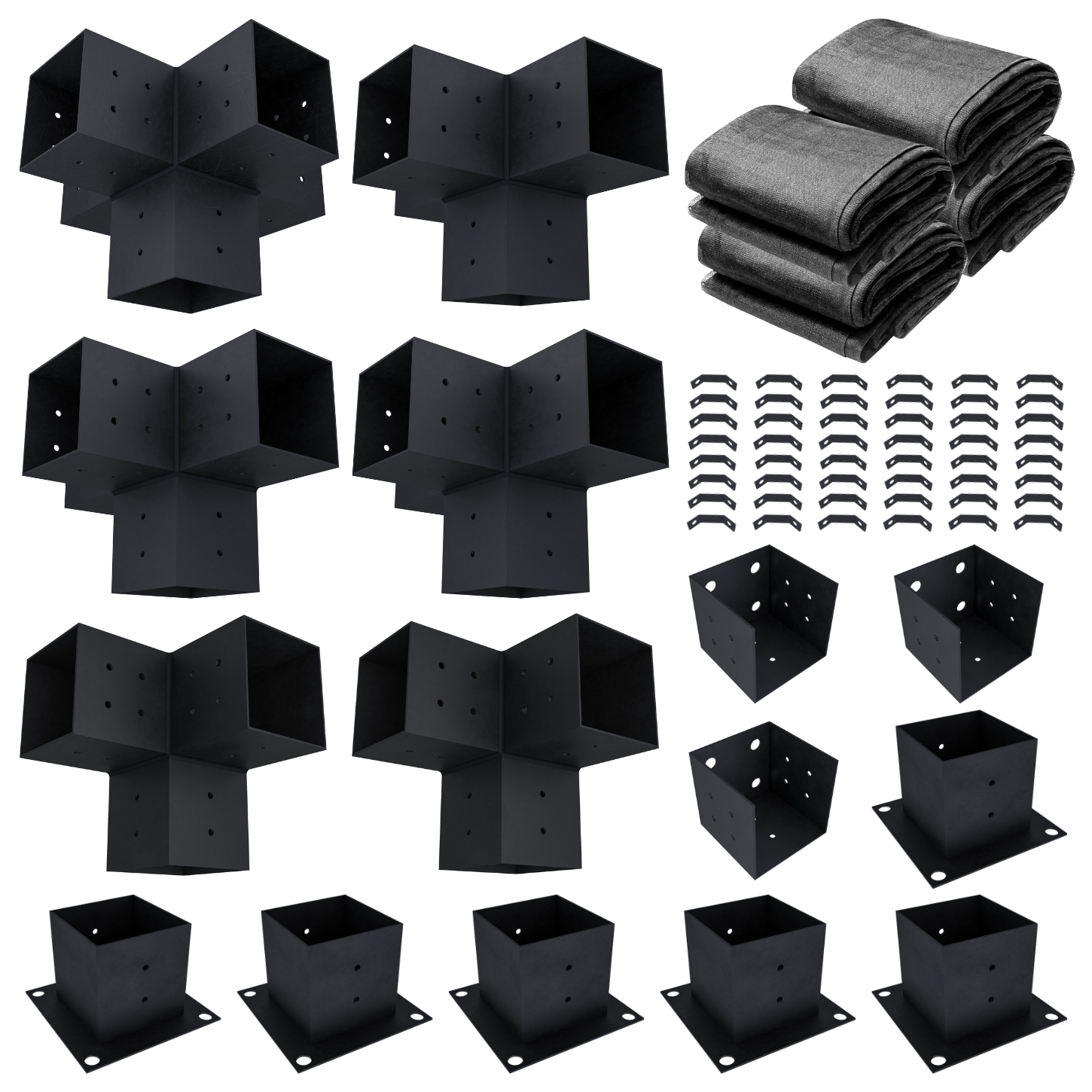

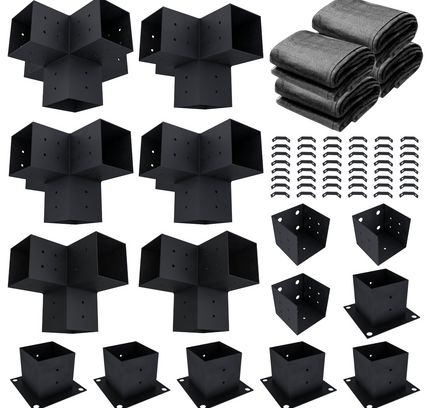

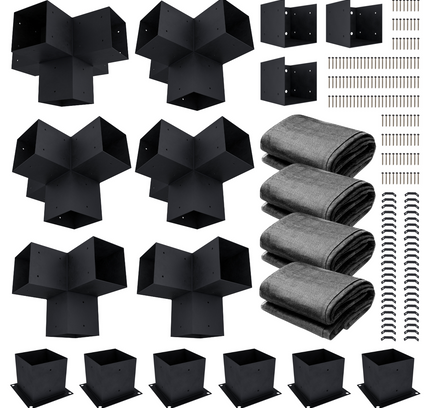

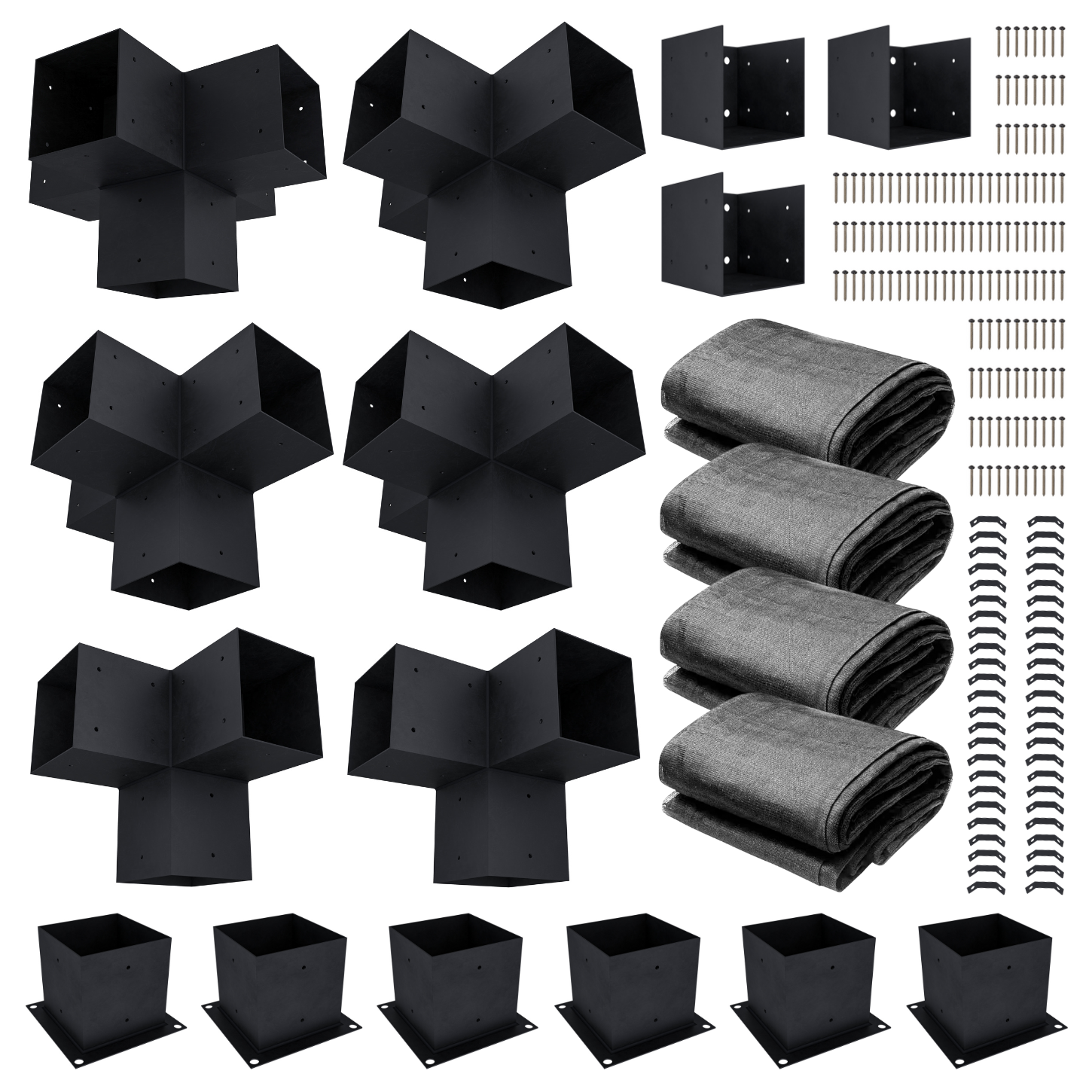

What's Included

• 6x post base brackets
• 3x wall mount brackets
• 2x corner 3-arm brackets
• 3x middle 4-arm brackets
• 1x central 5-arm bracket
• 4x shade canopies (plus mounting brackets)
• Stainless steel #12 wood screws

Note:

Lumber (wood)

and

anchoring hardware

for anchoring the post base brackets and wall mount brackets are

not

included and will need to be purchased locally. Screws

are

included in the kit.

Bracket Details

• Made to fit common lumber sizes (4x4s, 6x6s, 2x4s and 2x6s)
• Made with premium 12-gauge (6x6 size) or 14-gauge steel (all other sizes)
• Laser-cut and laser-welded
• Premium weather coating to withstand extreme conditions
• Pre-drilled holes for securing wood & accessories
• Shipped direct to your doorstep from Boise, Idaho
• Backed by a 5-year warranty

Shade Canopy Details

• Made of fade-resistant 180 GSM High-Density Poly-Ethylene (HDPE) knitted fabric
• Your choice of 6 sizes: 8x8, 8x10, 8x12, 10x10, 10x12 or 12x12 (note: canopies actually measure 4 inches shorter than indicated to allow room for mounts & straps)
• Blocks up to 95% of harmful UV rays
• Semi-permeable to prevent rain from pooling on top
• Each side has 4 straps to keep the canopy tight and prevent drooping
• Includes mounting brackets & screws to secure straps to the pergola's corner brackets and roof beams
