Create a small backyard sanctuary with a 10.5 ft tall stainless steel dome enclosure designed for plants, pets, creative use, or a quiet outdoor escape. The CNC Planet brings geometric design, polished stainless steel, and flexible enclosure options into a compact structure with a surprisingly spacious interior.

Overview

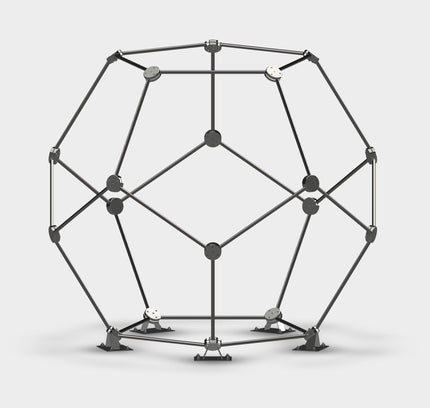

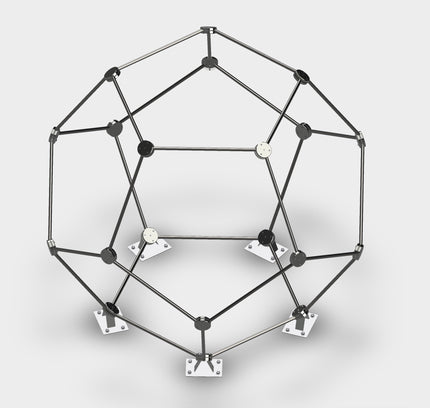

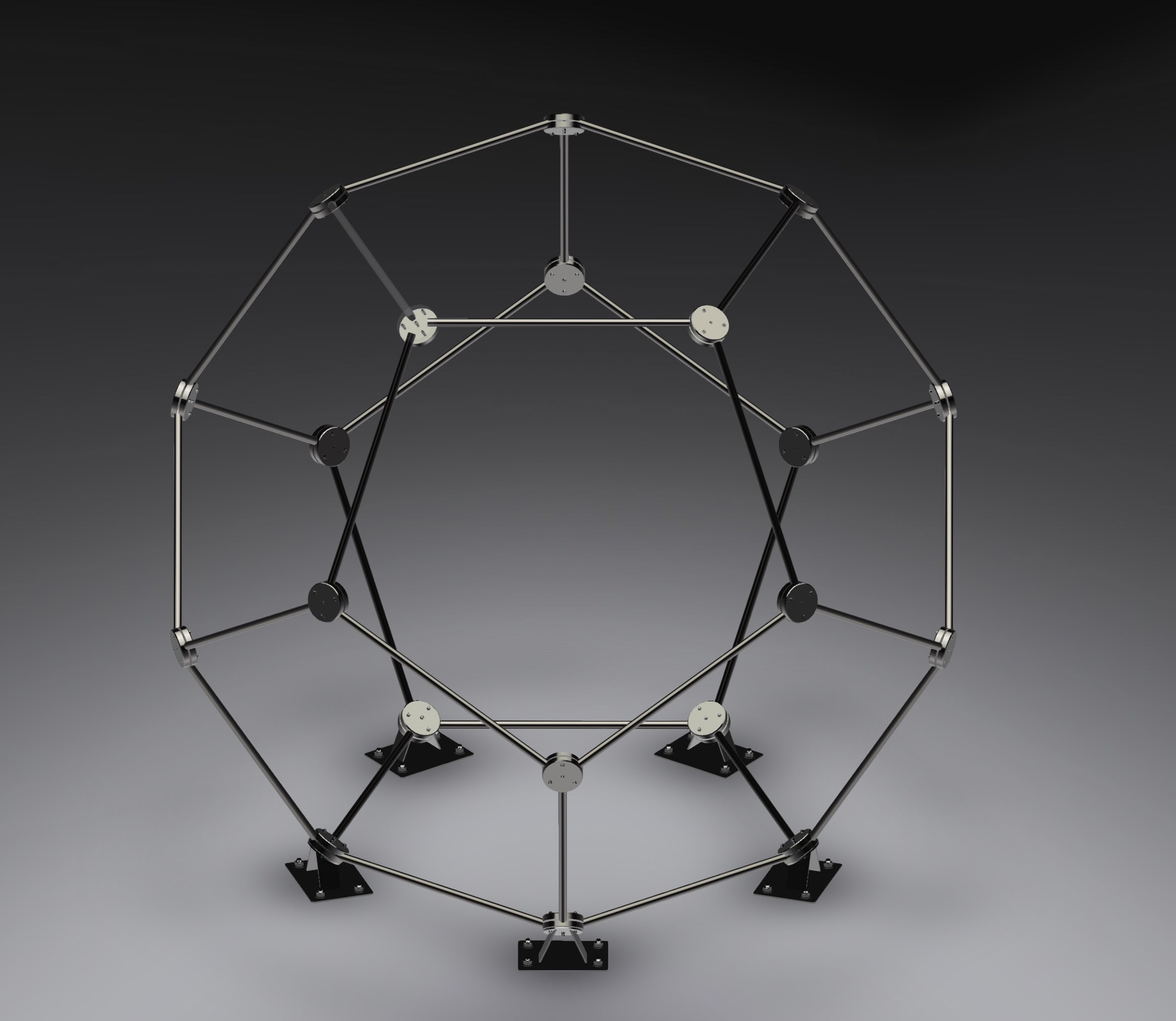

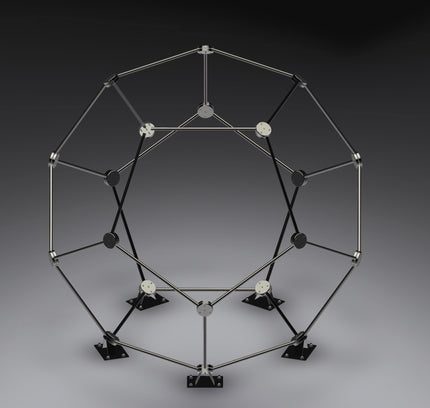

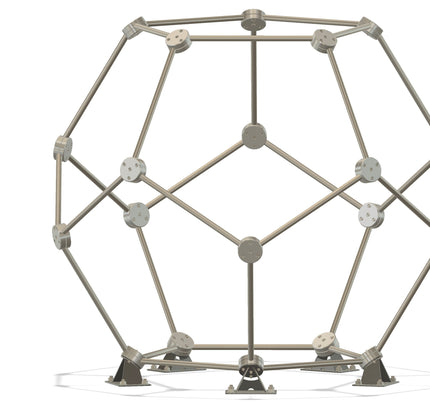

The CNC Planet 10.5 Ft Tall Stainless Steel 12 Foot Dome Enclosure is the entry-level dome in this collection. It is a strong choice for homeowners who want a unique backyard feature without taking over the whole yard.

With a footprint under 8 feet in diameter, this dome can work as a miniature greenhouse, a stylish pet enclosure, a creative studio nook, or a small private retreat. Its spherical shape creates a spacious interior feel while keeping the ground footprint compact.

The frame can be purchased as a bare structure or paired with an optional polycarbonate or glass panel kit to create a fully enclosed miniature oasis.

Why Homeowners Choose It

• Creates a unique backyard focal point in a compact footprint
• Can be used as a miniature greenhouse, pet space, creative enclosure, or retreat
• 10.5 ft height gives the interior an open feel
• Stainless steel and aluminum construction supports long-term outdoor use
• Available as a bare frame or with optional panel mounting kit
• Optional polycarbonate or glass panels help create an enclosed sanctuary
• Engineered drawings are provided with your order
• Lifetime product and assembly assistance is included

Specifications

This dome includes these core specifications:

• Designation: Planet
• Frequency: V2; inscribed fullerene

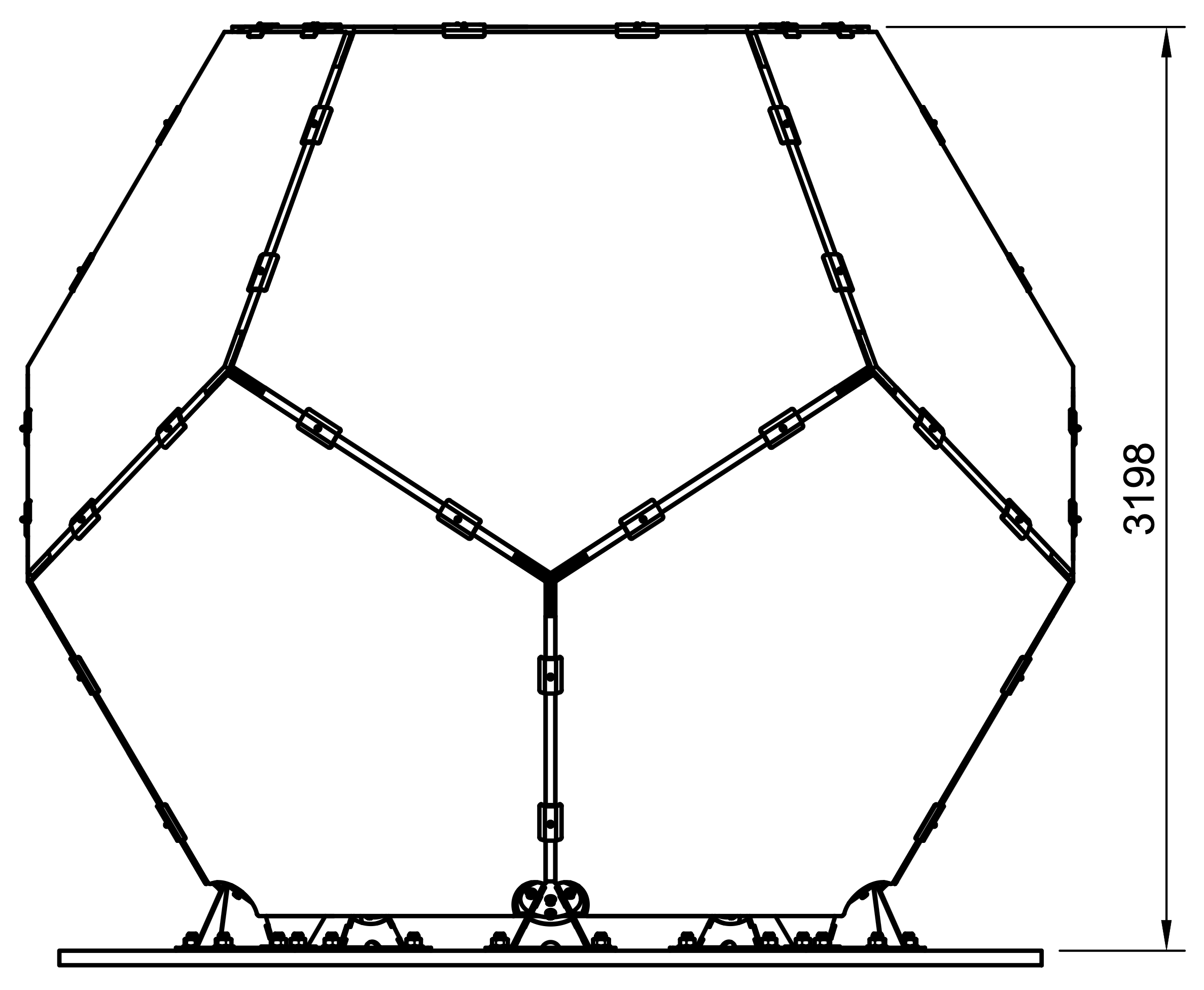

• Height: 10.5 ft, or 3.2 meters, from floor to ceiling

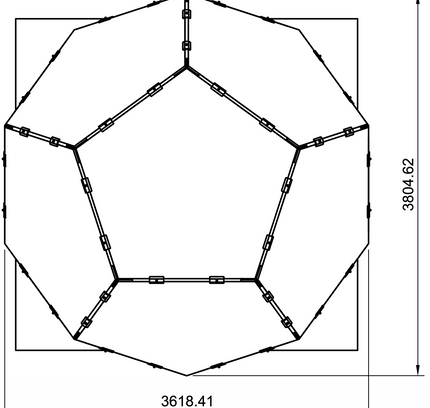

• Maximum width: 12.5 ft diameter at eye level
• Footprint: 7.5 ft diameter circle on ground
• Interior space: 2800 cubic feet, or 80 cubic meters, of usable interior space
• Structure type: true dodecahedron
• Ground mounting: 5 oversized stainless steel ground mounting plates
• Anchor bolts are not included
• Hub material: 6061 T6 aluminum two-piece hubs
• Tube material: 2" 1.6mm WT 304 stainless polished tubes

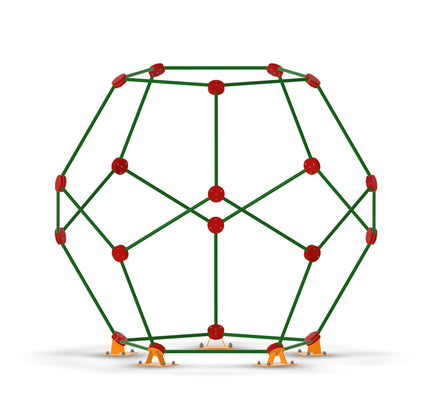

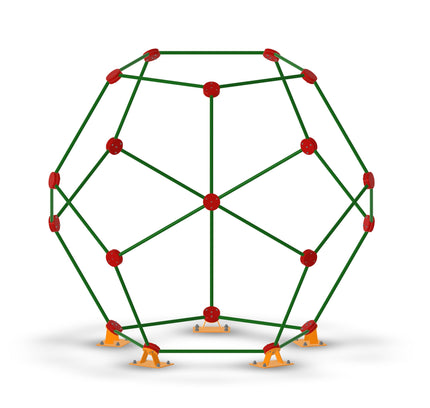

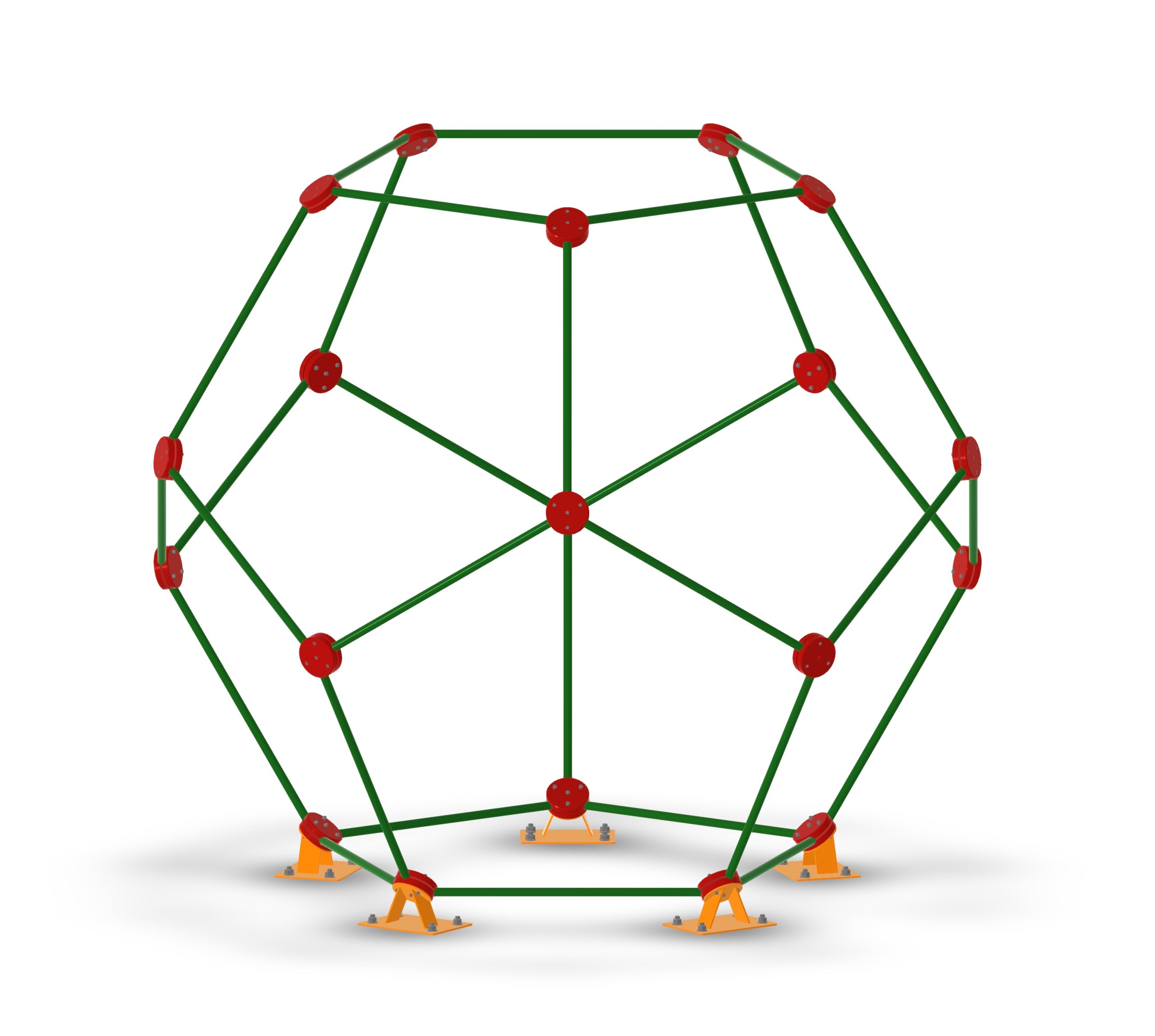

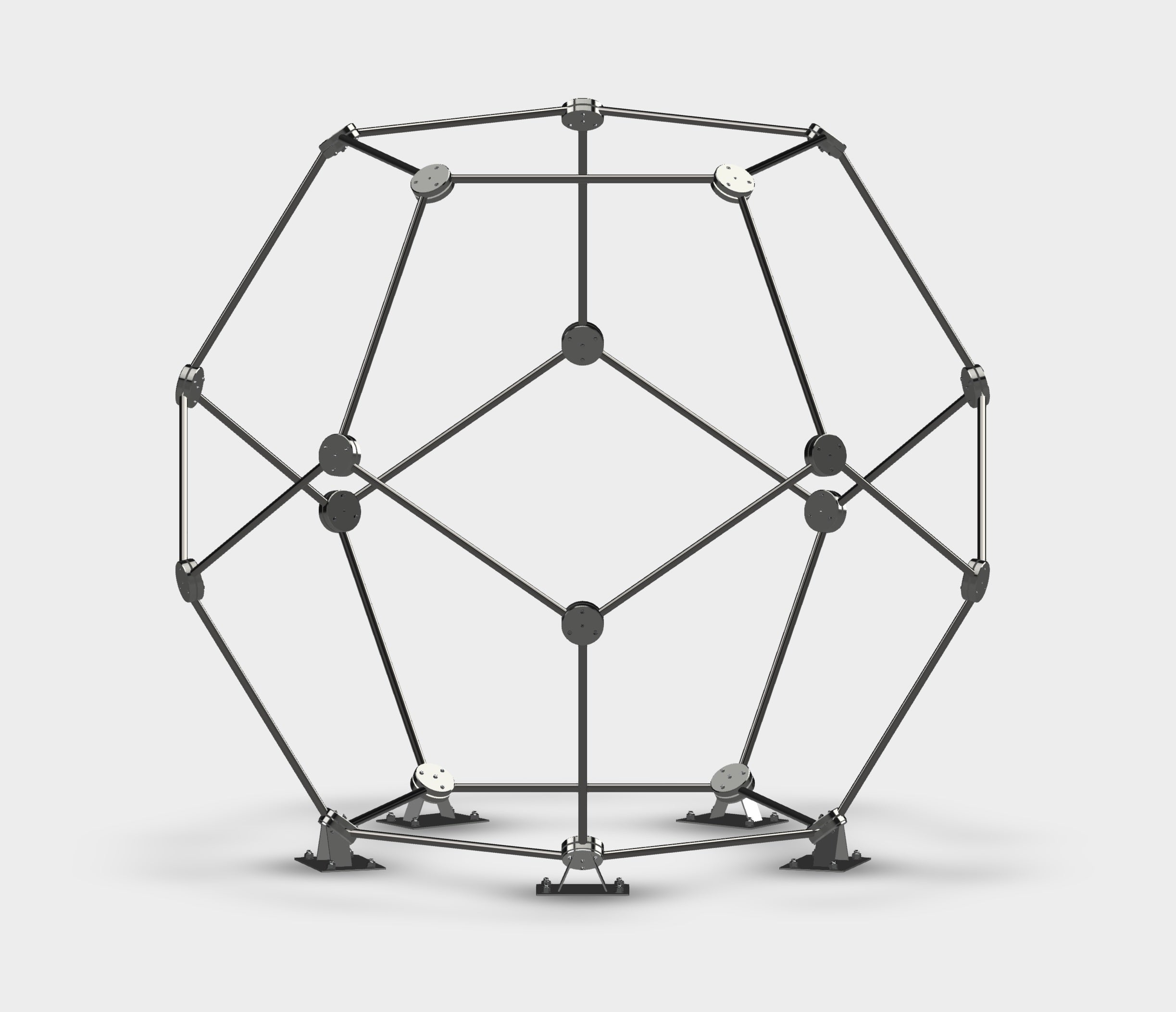

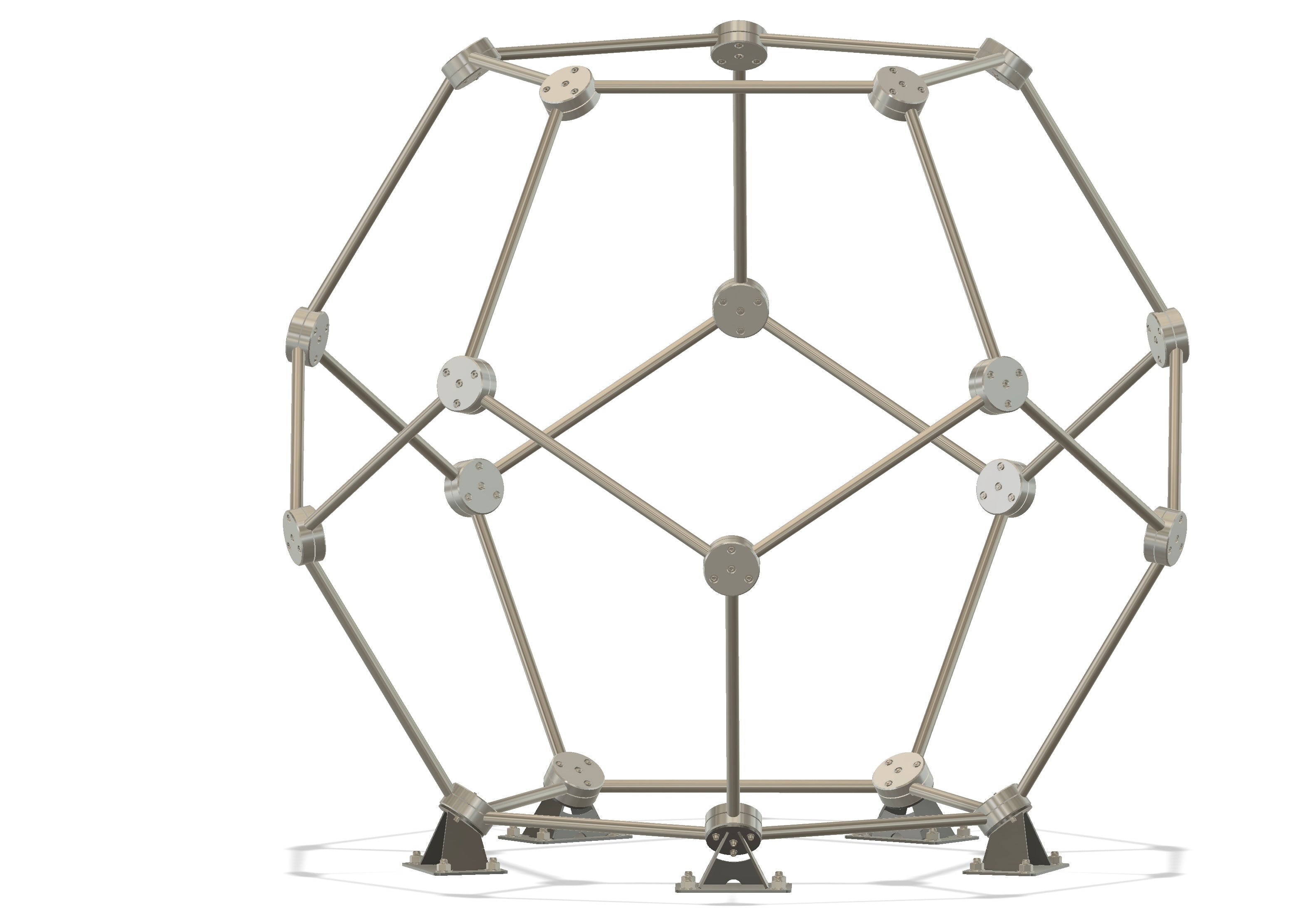

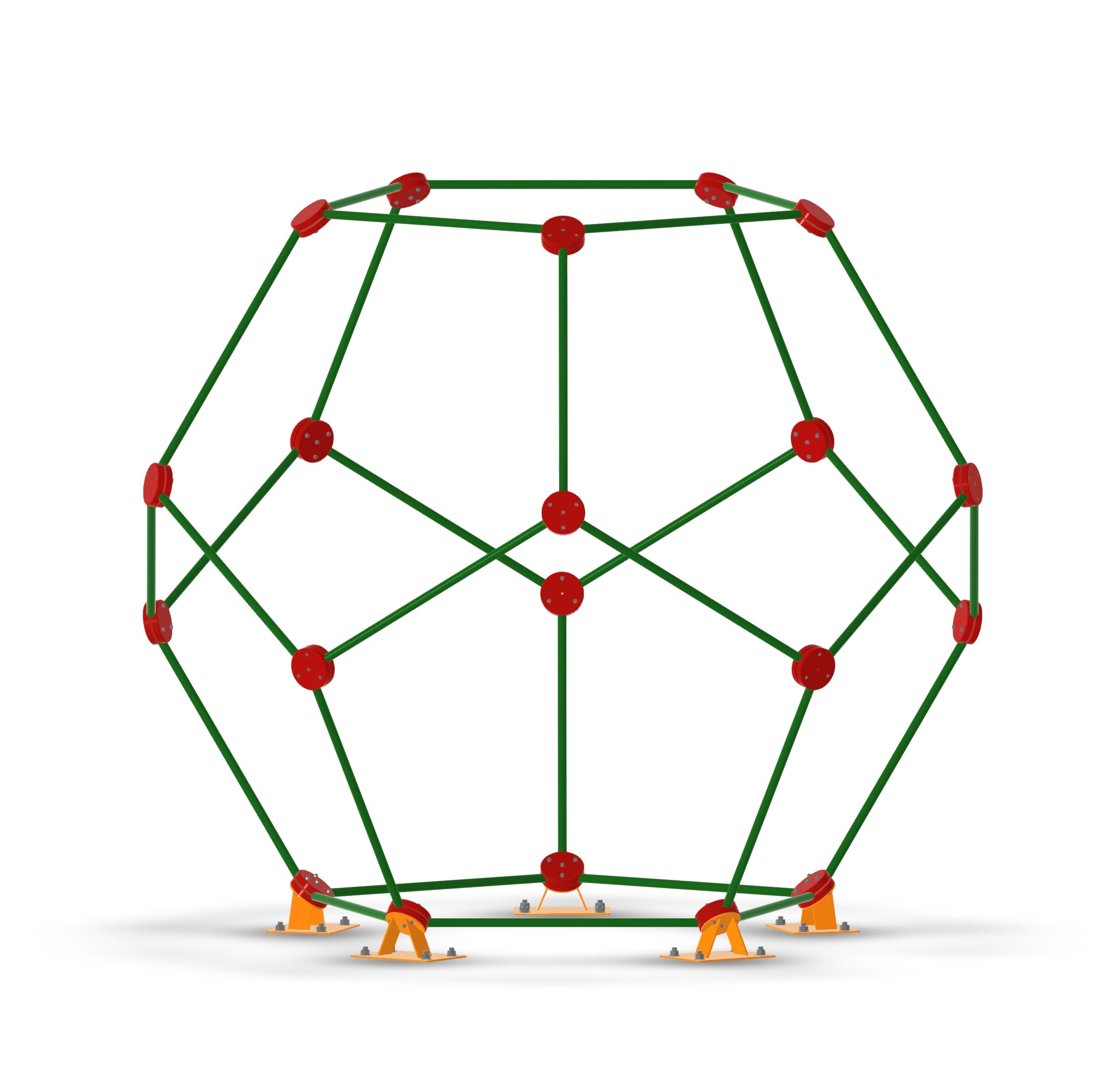

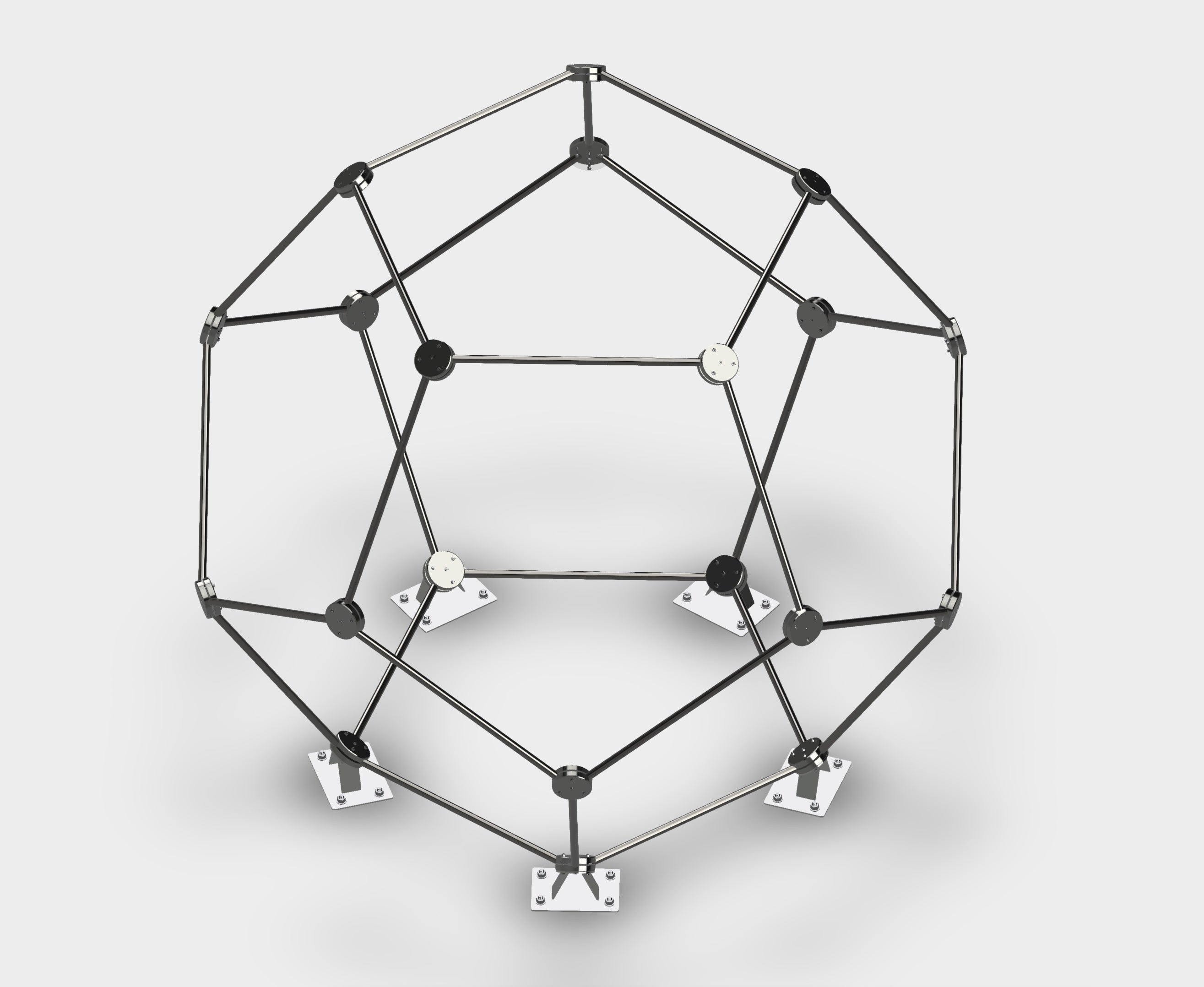

• Frame contents: 30 tubes that fit into 20 hubs
• Assembly hardware: all bolts, nuts, and washers required for assembly included

The compact ground footprint makes this dome easier to place than larger structures, while the tall spherical interior creates useful room for plants, seating, pet use, or a custom backyard setup.

Panel Options

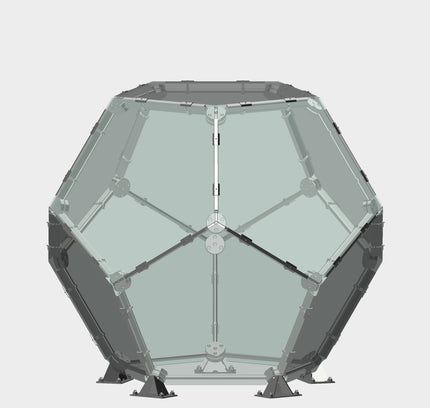

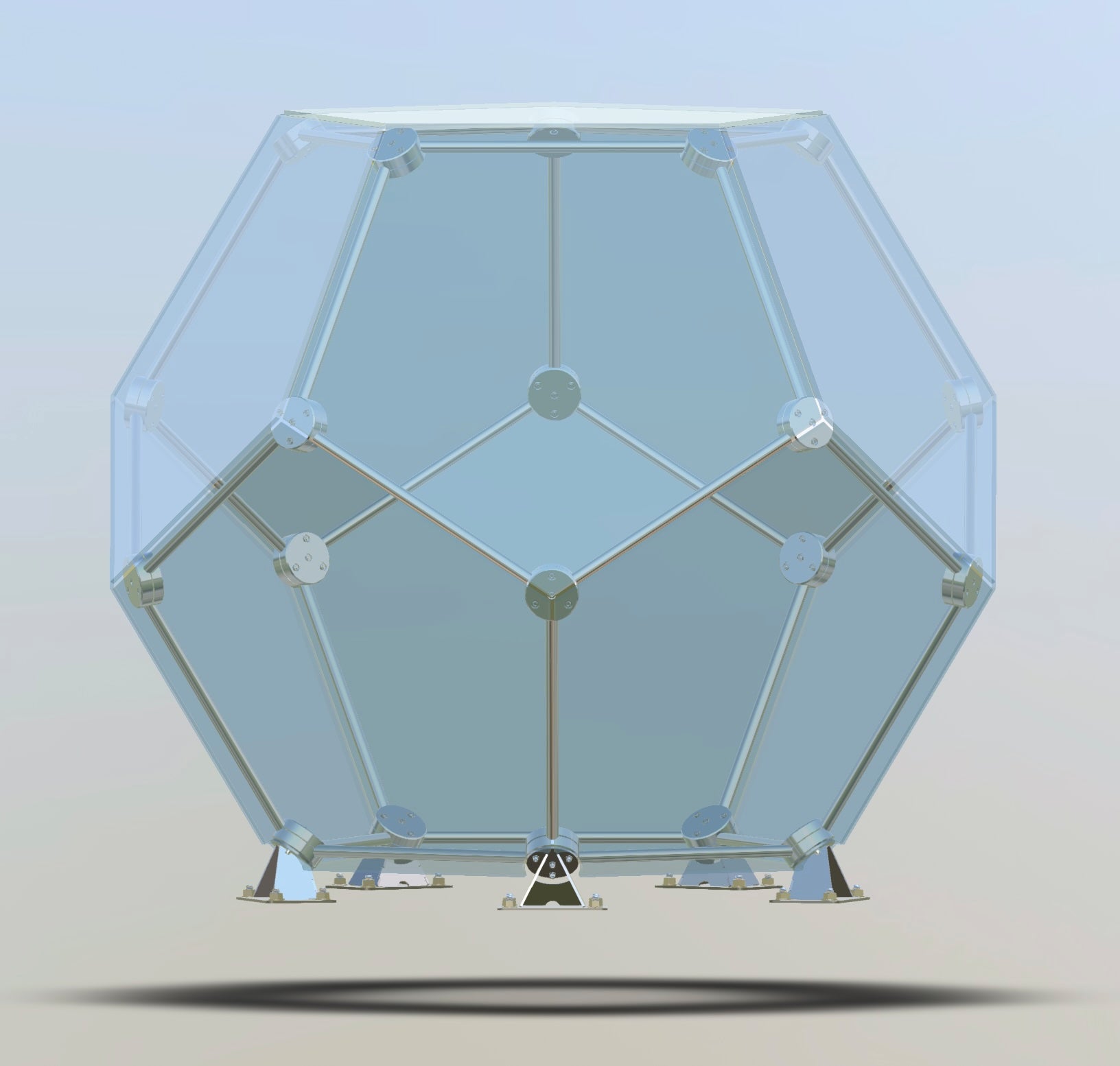

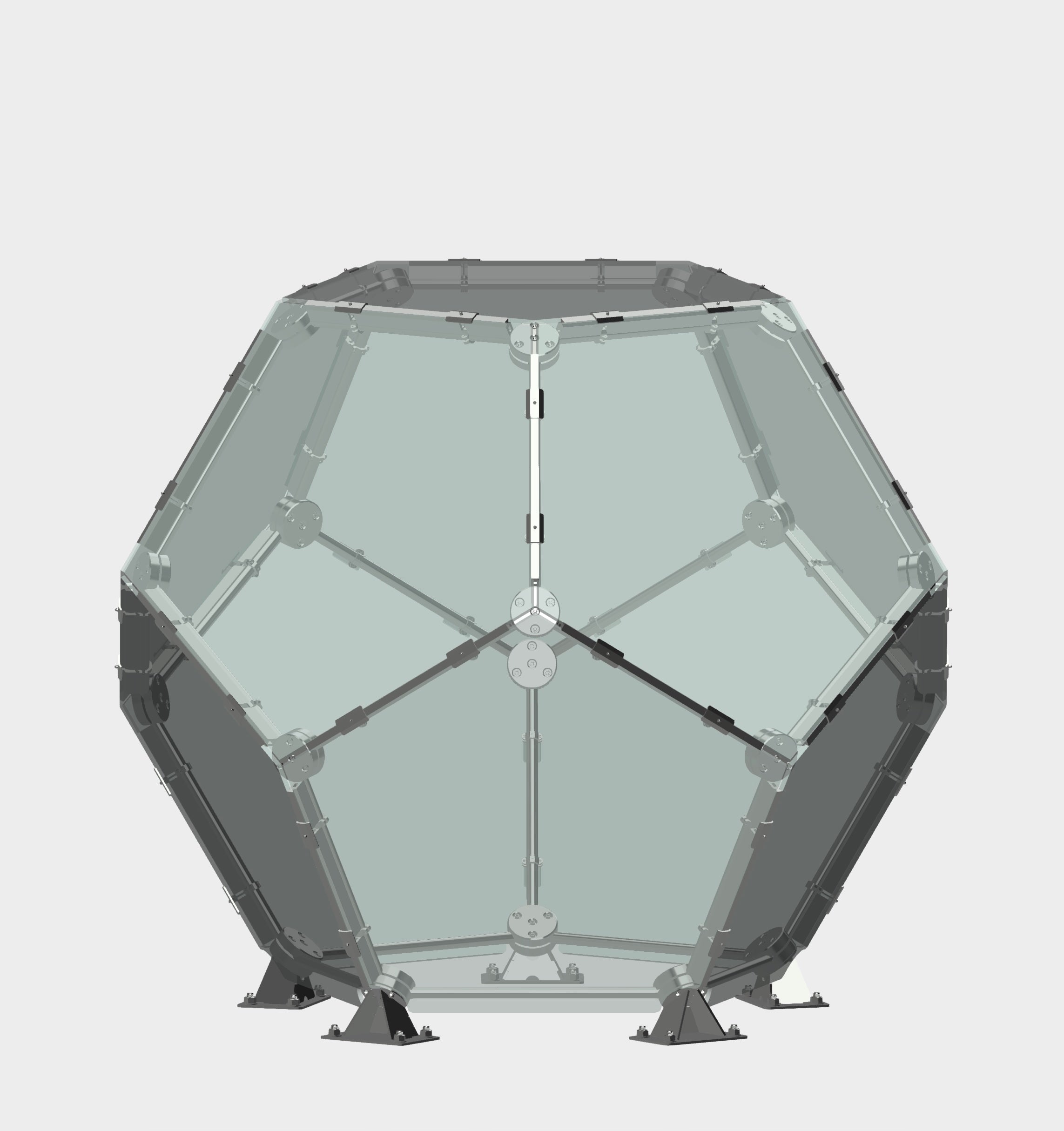

This dome can be purchased as a bare frame or with an optional panel mounting kit to create a fully enclosed structure.

Additional contents with panel kit:

• 50 glass holding bracket assemblies used to secure panels to the structure
• 26 meters platinum cured silicone weatherstripping to support and seal panels

Panels are held tightly on the round tubes using glass holding brackets. These brackets clamp the tubes and push downward onto the panels from the exterior. The panels rest on high-quality platinum cured silicone gaskets shaped to support the panels, resist UV exposure, and withstand temperature extremes.

Material Choices

25mm Insulated Polycarbonate
This option provides the highest insulation value of R4 using four-layer honeycomb multi-layer greenhouse polycarbonate panels. The kit comes with 11 pentagon panels to clad the entire structure. The bottom five panels have pre-cut openings for the feet. An entrance can be cut in your desired shape using a saw or hot melting plastic cutting knife. These panels have 75% light transmission and are translucent, but not see-through.

8mm Clear Polycarbonate
Select this option if a clear view from the outside or inside is part of your vision. Clear polycarbonate has a lower insulation value than the insulated option. It heats up faster during the day and loses heat quicker at night. The kit comes with 11 pentagon panels to clad the entire structure. The bottom five panels have pre-cut openings for the feet. An entrance can be cut in your desired shape using a saw or hot melting plastic cutting knife. These panels have 90% light transmission and are translucent, but not see-through.

9mm Low-E Glass
For the most premium option, annealed safety glass with an infrared reflecting coating offers strong scratch resistance and mechanical strength. It is notably heavier than the polycarbonate options. The glass kit comes with 10 panels. One of the five lower pentagons is skipped for the opening.

Before You Buy

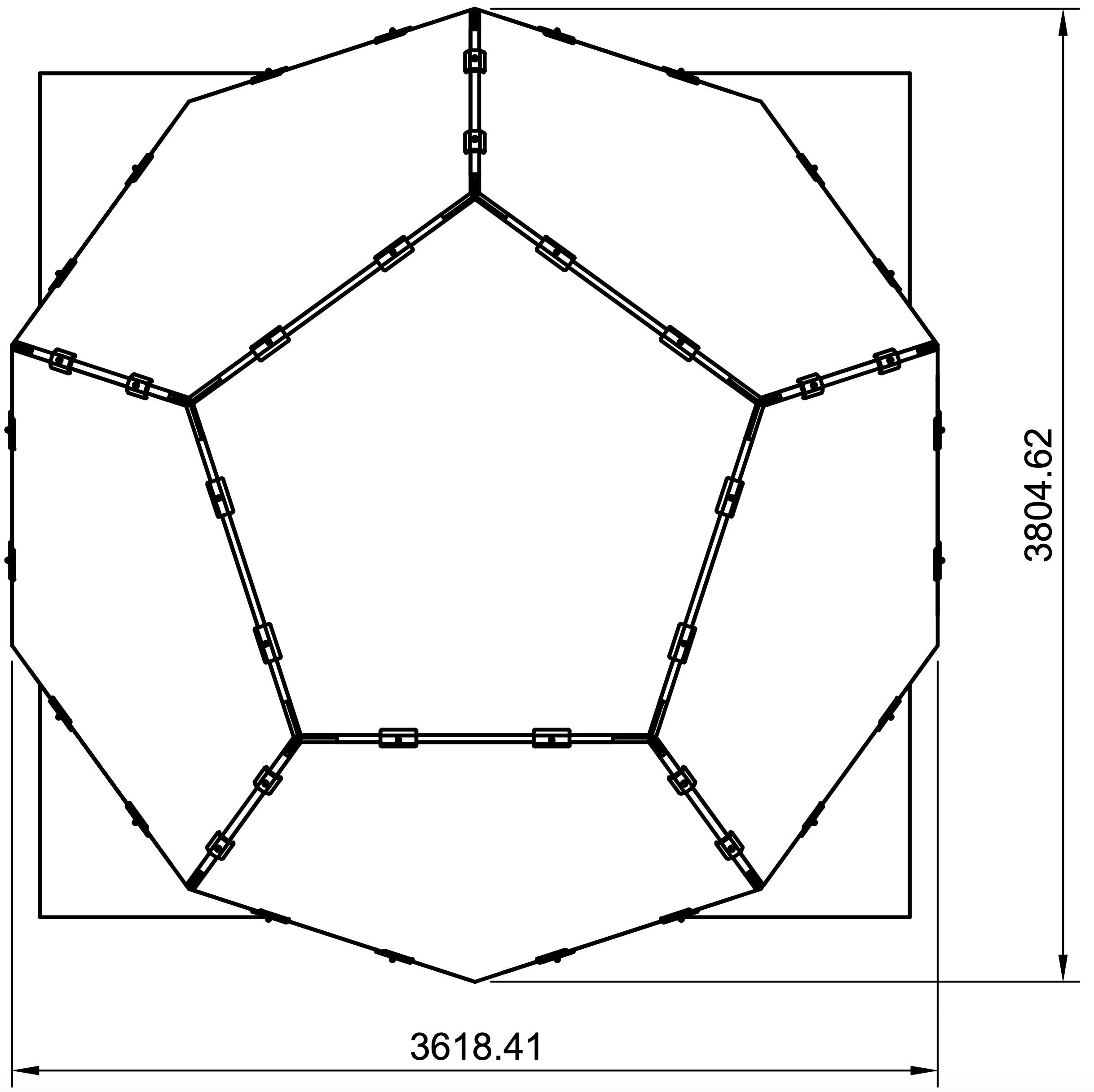

Before ordering, review your available space carefully. The dome has a 7.5 ft diameter footprint on the ground and reaches 10.5 ft high from floor to ceiling.

Choose a level location with proper drainage and enough access for delivery, assembly, and long-term use. Since anchor bolts are not included, plan your mounting method before installation.

If you choose a panel kit, consider how you plan to use the dome before selecting your panel material. Insulated polycarbonate offers the most warmth. Clear polycarbonate is better for visibility. Low-E glass offers a premium finish, scratch resistance, and added mechanical strength.

It is also smart to check local codes, HOA rules, zoning limits, and permit requirements before installation. Customizations may be available at an additional charge.

Shipping

Order-to-delivery time is typically 40–60 days.

For USA customers, all freight costs and taxes are included. For worldwide customers, freight costs are included to most locations, though some regions may require surcharges. International customers are responsible for customs import taxes collected by the shipping broker at time of delivery.

FAQs

What can the CNC Planet dome be used for?
It can be used as a miniature greenhouse, pet enclosure, creative human enclosure, studio nook, or small backyard retreat.

Can I buy the dome as a bare frame?
Yes. The unit can be purchased as a bare frame or with the optional panel mounting kit.

What is included with the bare frame?
The bare frame includes 5 stainless steel ground mounting plates, 20 6061 T6 aluminum two-piece hubs, 30 polished stainless steel tubes, and all bolts, nuts, and washers required for assembly. Anchor bolts are not included.

How large is the dome?
The dome is 10.5 ft tall, has a maximum width of 12.5 ft diameter at eye level, and has a 7.5 ft diameter footprint on the ground.

How much usable interior space does it provide?
The structure provides 2800 cubic feet, or 80 cubic meters, of usable interior space.

What are the panel options?
Panel options include 25mm insulated polycarbonate, 8mm clear polycarbonate, and 9mm Low-E glass.

Can I preview it in my yard?
Yes. To preview the model in your setting using augmented reality, view this product page on your smartphone and tap the View in 3D button.

Are engineered drawings included?
Yes. Engineered drawings are provided with your order.

Is support available after purchase?
Yes. Lifetime product and assembly assistance is available by phone, text, and email. Installation advice is available during regular business hours.

Are replacement parts available?
Yes. Lifetime access to replacement parts is included.

Support

Lifetime product and assembly assistance is provided by phone, text, and email. Installation advice is available during regular business hours.

Customizations may be available at an additional charge.

Resources

To preview the model in your setting using augmented reality, view this product page on your smartphone and tap the View in 3D button.
